WayPoint17A

CCTV Power Supply, Outdoor, 2 Fused Outputs, 24/28VAC @ 7.25A, 115/220VAC, WP3 Enclosure

This product replaces T24175WP and T2428175WP

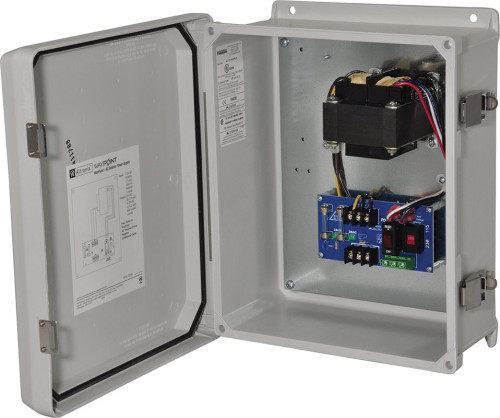

WayPoint-17A Outdoor Power Supply provides 24VAC and/or 28VAC distributed via one or two output(s) for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • Input: 115VAC, 50/60Hz, 1.7A or 230VAC, 50/60Hz, 1.0A.
  • Output
      • Output options:
        • a. 24VAC @ 7.25A max.
        • b. 28VAC @ 6.25A max.
        • c. Both 24VAC and 28VAC not to exceed 6.25A max.
    • Output fuses rated @ 10A 250V.
  • Features
    • Individual power output LEDs.
    • Spare fuses included.
  • Temperature
    • Operating Temperature: - 20º C to 50º C ( -4º F to 122º F).
    • Storage Temperature: -40ºC to 70ºC ( -40ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 90 BTU/Hr.
      • System AC input VA requirement:
        • 115VAC: 195.5VA.
        • 230VAC: 230VA.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 13.85 Lbs. (6.28 kg).
  • Shipping Weight: 15.15 Lbs. (6.87 kg).
