T2428100CP

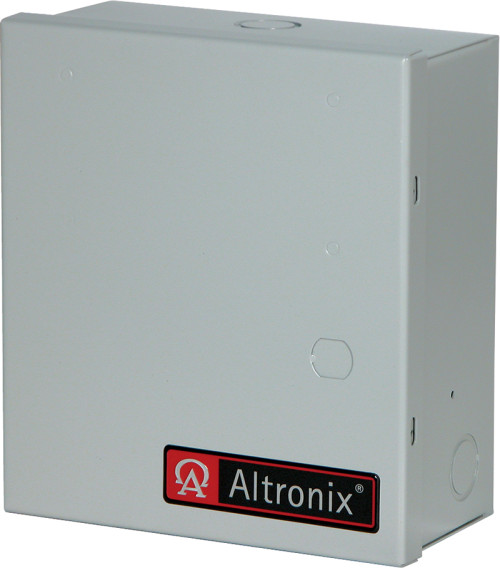

Open Frame Transformer, 24/28VAC @ 100VA, 115VAC, BC100 Enclosure

Altronix T2428100CP AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Specifications

  • Input
    • 115VAC 50/60 Hz, 0.95A.
    • In-line fuse rated @ 3.5A/250V.
    • Fused input protection.
  • Output
    • 24VAC @ 4A or 28VAC @ 3.5A supply current.
  • Features
    • Green grounding lead.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 50 BTU/Hr.
    • System AC input VA requirement: 110VA.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 6.5 Lbs. (2.94 kg).
  • Shipping Weigtht: 7.1 Lbs. (3.22 kg).
