T2428300E

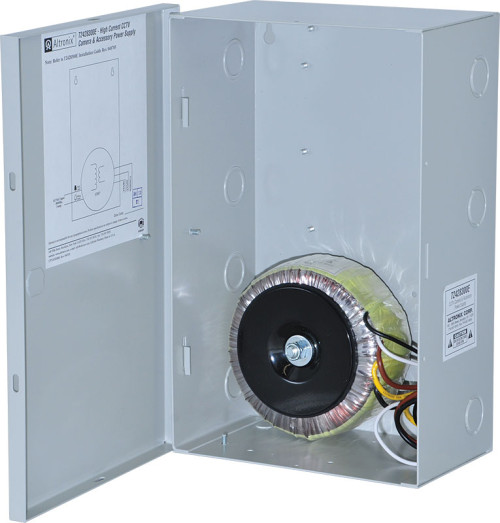

Open Frame Transformer, 24/28VAC @ 300VA, 115VAC, BC200 Enclosure

This product replaces T2428300C and T24300C

Altronix T2428300E AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

  • Input
    • 115VAC 50/60 Hz, 2.7A.
    • Fused input protection rated @ 5A/250V.
  • Output
    • 24VAC @ 14A or 28VAC @ 12.5A supply current.
  • Features
    • Fused input protection.
    • Green grounding lead.
  • Temperature
    • Operating 0° C to 49° C ( 32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 24VAC: 172 BTU/Hr.
        • 28VAC: 179 BTU/Hr.
    • System AC input VA requirement: 310.5 VA.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 7.2 Lbs. (3.27 kg).
  • Shipping Weight: 8.5 Lbs. (3.86 kg).
