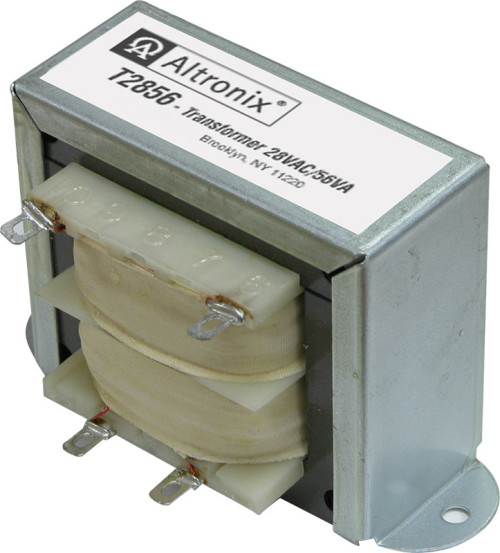

T2856

Open Frame Transformer, 28VAC @ 56VA, 115VAC

Altronix T2856 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Input
- 115VAC 50/60 Hz, 0.5A.
Output
- 28VAC/56VA (2A) supply current.
Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 29 BTU/Hr.
- System AC input VA requirement: 57.5VA.
