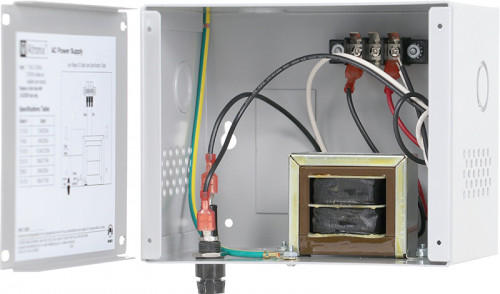

T2856C

Open Frame Transformer, 28VAC @ 56VA, 115VAC, CAB4 Enclosure

Altronix T2856C AC power supply provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Specifications

  • Input
    • 115VAC 50/60 Hz, 0.6A.
  • Output
    • 28VAC @ 2A supply current.
  • Features
    • Fused input protection.
    • Green grounding lead.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 29 BTU/Hr.
    • System AC input VA requirement: 69VA.

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7"W x 5.62"H x 4.5"D (178 mm W x 143 mm H x 114 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 5 Lbs. (2.27 kg).
  • Shipping Weigtht: 5.7 Lbs. (2.59 kg).
