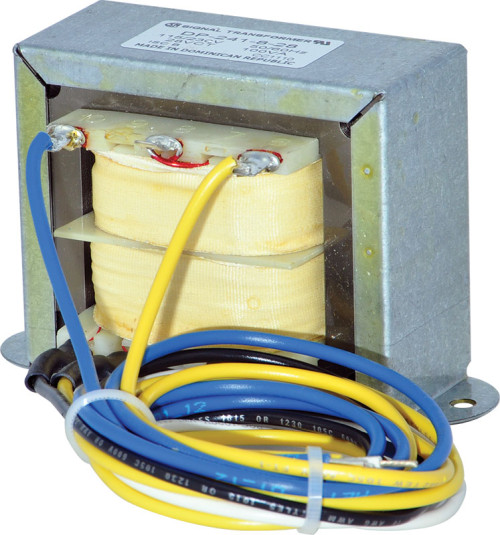

T2885D

Open Frame Transformer, 28VAC @ 100VA, 115/220VAC Enclosure

Altronix T2885D dual voltage open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Specifications

  • Input
    • 115VAC 50/60 Hz @ 1A or 220VAC 50/60 Hz, 0.5A.
  • Output
    • 28VAC/100VA (3.5A) supply current.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 50 BTU/Hr.
    • System AC input VA requirement:
    • 115VAC: 115VA.
    • 220VAC: 110VA.

Dimensions & Weight

Dimensions (approximate):
  • 2.25"W x 3.7"L x 2.2"H (57 mm W x 94 mm L x 56 mm H).
Weights (approximate):
  • Product Weigtht: 2.2 Lbs. (1 kg).
  • Shipping Weigtht: 3 Lbs. (1.36 kg).
