T2PHK7524D

24-Door Altronix/Openpath Access and Power Integration Kit with Fused Outputs - Trove2CV2 with AL1024ULXB2, AL1012ULXB2, (2) ACMS12CB, PDS16CB. Trove2 Series

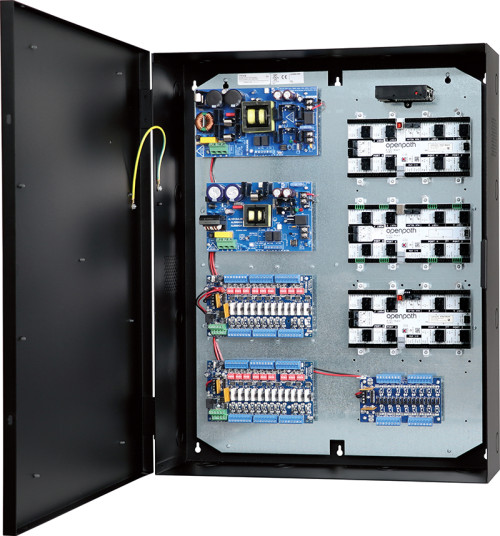

Altronix T2PHK7524D kit consists of Trove2 enclosure, TCV2 Openpath/Altronix backplane with one (1) 24VDC @ 10A and one (1) 12VDC @ 10A power supply/charger, two (2) twelve (12) PTC protected output dual input access control modules and one (1) sixteen (16) output dual input PTC power distribution module.
This kit also accommodates up to one (1) Openpath Core, two (2) Elevator Board, three (3) 4-Port or 8-Port modules for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • AL1024ULXB2 Power Supply/Charger - 1
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A.
        • Fusing: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • AL1012ULXB Power Supply/Charger - 2
      • Input
        • Voltage: 115VAC, 60Hz, 2.6A.
        • Fusing: 5A / 250V.
      • Output
        • Voltage: 12VDC.
        • Current: 10A @ 12VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
        • Capacity 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
        • Type: Sealed lead acid or gel type
        • Failover: Upon AC loss, instantaneous
        • (Batteries are sold separately).
      • Supervision
        • AC Failure: Form “C” contacts.
        • Battery: Form “C” contacts.
      • Indicators LED
        • Input: 115VAC is present.
        • DC Output: Powered.
        • Battery: Discharged or not connected.
  • Two (2) ACMS12CB Dual Input Access Power Controllers
      • Input
        • Voltage: 24VDC from AL1024ULXB2 and 12VDC from AL1012ULXB.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Twelve (12) independently controlled PTC outputs:
        • a) Fail-Safe and/or Fail-Secure power outputs.
        • Form “C” Relays rated 28VAC or VDC @ 2.5A.
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED's)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • PDS16CB Dual Input Power Distribution Module
      • Input
        • Voltage: 12VDC from AL1012ULXB and 24VDC from AL1024ULXB2.
        • Input PTCs: 9A.
      • Outputs
        • Voltage: 12VDC and/or 24VDC.
        • Any of the sixteen (16) power outputs are selectable to follow power Input 1 or Input 2.
        • Individual outputs may be set to OFF position for servicing.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • DC Output: Sixteen (16) individual output LEDs.
        • Green: 12VDC
        • Red: 24VDC.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 290 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
WM100 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM5 Magnetic Cable Tie Mounts
BR1 Add-On Mounting Bracket

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D).
  • 3/4" and 1" combination knockouts.
Weights (approximate):
  • Product Weigtht: 49.8 Lbs. (22.59 kg).
  • Shipping Weigtht: 53.55 Lbs. (24.29 kg).
