T2SSK7514

14-Door Altronix/Lenel-S2 Access and Power Integration Kit - Trove2SS2 with AL1024ULXB2, AL1012ULXB, (2) ACM8, (2) PD8UL, RSB2

News Flash… Altronix lead time for all Trove Access & Power Integration kits are now 15 days max.

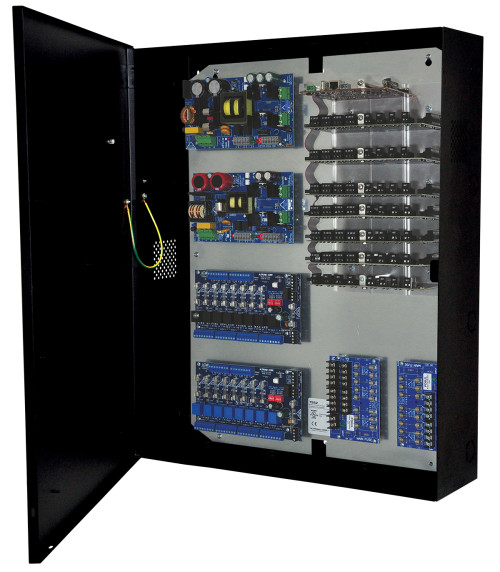

Altronix T2SSK7514 kit consists of Trove2 enclosure, TSS2 Lenel-S2 (S2 Security Platform) / Altronix backplane with one (1) 24VDC @ 10A power supply/charger, one (1) 12VDC @ 10A power supply/charger, two (2) fused access power controllers and two (2) fused power distribution modules.
This kit also accommodates S2-INST Installation Kit For Lenel-S2 (S2 Security Platform) S2 Network Node for up to fourteen (14) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

  • AL1024ULXB2 Power Supply/Charger - 1
      • Input
        • Voltage: 115VAC, 60Hz, 4.2A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 24VDC.
        • Current: 10A @ 24VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • AL1012ULXB Power Supply/Charger - 2
      • Input
        • Voltage: 115VAC, 60Hz, 2.6A max.
        • Main Fuse: 5A / 250V.
      • Output
        • Voltage: 12VDC.
        • Current: 10A @ 12VDC continuous max.
        • Other: Overvoltage protection. Filtered and regulated.
  • Both Power Supplies
      • Battery Charging
      • Capacity: 12VDC/12AH (2 within enclosure); 40AH/65AH (requires separate enclosure)
      • Type: Sealed lead acid or gel type
      • Failover: Upon AC loss, instantaneous.
      • (Batteries are sold separately).
    • Supervision
      • AC Failure: Form “C” contacts.
      • Battery: Form “C” contacts.
    • Indicators LED
      • Input: 115VAC is present.
      • DC Output: Powered.
      • Battery: Discharged or not connected.
    • Two (2) PD8UL Power Distribution Modules
        • Input
          • Voltage: 24VDC from AL1024ULXB2 or 12VDC from AL1012ULXB.
        • Outputs
          • Voltage: 24VDC or 12VDC.
          • Output Fuses: 3.5A/250V.
        • Indicators (LED)
          • Green LED: DC Output.
    • Two (2) ACM8 Access Power Controllers
        • Input
          • Voltage: 24VDC from AL1024ULXB2 or 12VDC from AL1012ULXB.
          • Input Fuse: 10A/250V.
        • Outputs
          • Voltage: 24VDC or 12VDC.
          • Eight (8) 24VDC and eight (8) 12VDC independently controlled fused outputs:
          • a) Fail-Safe and/or Fail-Secure power outputs.
          • Form “C” Relays rated 28VAC or VDC @ 2.5A.
          • b) Auxiliary power outputs (unswitched).
          • c) Any combination of the above.
          • Output Fuses: 3.5A/250V.
        • Indicators (LED)
          • Red LEDs: Outputs are triggered (relays energized).
          • Green LED: FACP disconnect is triggered.
    • Environmental
        • Temperature
          • Operating: 0° C to 50° C (32° F to 122° F).
          • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity
          • Relative Humidity: 85% +/- 5%.
        • BTU/Hr. (approx.):
          • 191 BTU/Hr.

    CE Compliant

    Components of this Trove kit are UL Listed sub-assemblies. Please refer to the corresponding Sub-Assembly Installation Guides for further information. Sub-assembly components of this kit can be found under the "Kit Contents" tab.
    Name Qty Description Agency Listings
    Trove2 1 Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
    TSS2 1 Trove2 Backplane for Altronix/S2
    AL1024ULXB2 1 Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
    AL1012ULXB 1 Power Supply Charger, Single Fused Output, 12VDC @ 10A, 115VAC, Board
    ACM8 2 Access Power Controller, 8 Fused Relay Outputs, FAI, Board
    PD8UL 2 Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board
    RSB2 1 Dual Power ON/OFF Rocker Switches with Mounting Bracket
    Enclosure:
    • Wall mount enclosure for indoor use.
    • Accommodates up to four (4) 12VDC/12AH Batteries.
    • Dimensions 30.12"W x 36.12"H x 7.06"D (768.1 mm W x 917.5 mm H x 179.3 mm D).
    • 3/4" and 1" combination knockouts.
    Weights (approximate):
    • Product Weight: 49 Lbs. (22.23 kg).
    • Shipping Weight: 53.35 Lbs. (24.2 kg).
    Configure Trove Print

    Access controllers not included

    *Batteries sold separately
    Documentation A&E Specs
    Lifetime Warranty Locate a Distributor
