THWD2

Honeywell ProWatch/WinPak door backplane for Trove2 and Trove3

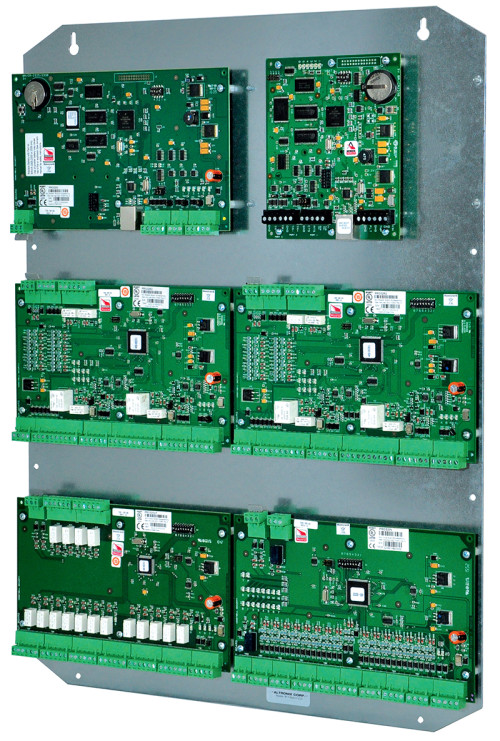

Altronix THWD2 door backplane for Trove2 and Trove3 enclosures accommodates a variety of Honeywell ProWatch/WinPak boards for access systems of up to twelve (12) doors. THWD2 simplifies board layout and wire management, reducing installation time and labor costs.

Specifications

  • Features
    • Simplifies board layout and wire management.
    • 16 AWG galvanized steel.
      • Accommodates the following Honeywell power controllers:
        • Up to six (6) PRO32IC, PRO32R2, PRO32IN, PRO32OUT, PW6K1IC, PW6K1R2, PW6K1IN, PW6K1OUT modules.
        • One (1) PRO22MX8 module.

Agency Listings

UL Listed For:
Access Control System Units (UL294)
cUL Listed For:
CAN/ULC - s319-05, Electronic Access Control Systems.

CE Compliant

Accessories

Name Description
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
WM100 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM5 Magnetic Cable Tie Mounts

Dimensions & Weight

Dimensions (approximate):
  • 0.3125"W x 18.125"L x 23.75"H (7.9 mm W x 460.3 mm L x 603.3 mm H).
Weights (approximate):
  • Product Weigtht: 8 Lbs. (3.63 kg).
  • Shipping Weigtht: 9 Lbs. (4.08 kg).
