TLM400K1D

4-Door Altronix/LiftMaster Access and Power Integration Kit - TM400 with eFlow4NTB, ACM4CB, NetWay5P, LMBK2.

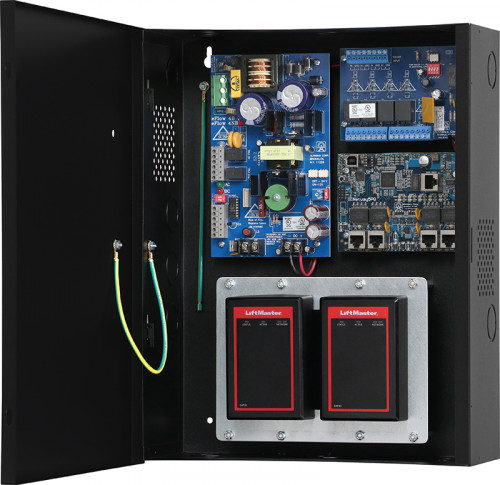

Altronix TLM400K1D consists of TM400 enclosure with 12VDC or 24VDC (factory set at 24VDC) @ 4A power supply/charger and four (4) PTC protected output access control module and 5-Port PoE Hardened Switch. This kit also accommodates LiftMaster Smart Access 2-Door Controller (CAP2D) modules for up to four (4) doors in a single enclosure. One (1) LMBK2 mounting bracket for LiftMaster CAP2D is factory installed. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Specifications

  • eFlow4NTB Power Supply/Charger
      • Input
        • Voltage: 120VAC, 60Hz, 3.5A.
        • Input Fuse: 5A/250V
      • Output
        • Voltage: 24VDC.
        • Current: 4A continuous.
        • Other: Overvoltage protection. Filtered and regulated.
  • Battery Charging
    • Capacity: Up to 40AH/65AH (requires separate enclosure).
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Supervision
    • AC Failure: Form “C” contacts.
    • Battery: Form “C” contacts.
    • Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Indicators LED
    • Input: 120VAC is present.
    • DC Output: Powered.
    • Battery: Discharged or not connected.
  • ACM4CB Access Power Controller
      • Input
        • Voltage: 12VDC or 24VDC from AL600ULXB.
        • Input PTC: 9A.
      • Outputs
        • Voltage: 24VDC.
        • Four (4) independently controlled PTC outputs:
        • a) Four (4) Fail-Safe and/or Fail-Secure power outputs; Form “C” Relays rated 28VAC or VDC @ 2.5A
        • b) Auxiliary power outputs (unswitched).
        • c) Any combination of the above.
      • Outputs Ratings
        • PTCs: 2.5A.
      • Indicators (LED)
        • Red LEDs: Outputs are triggered (relays energized).
        • Green LED: FACP disconnect is triggered.
  • NetWay5P 5-Port PoE+ Hardened Switch
      • Input Power
        • 12 or 24VDC from eFlow4NTB
      • Power Output
        • Maximum Power: Four (4) 10/100/1000 Mbps, PoE/PoE+ (rated up to 30W) ports, 60W (at 12VDC) or 120W (at 24VDC) total power, Integral surge protection
        • Uplink Port: Single data port
      • Ethernet Ports:
        • Five (5) 10/100/1000 Mbps ports.
        • Connectivity: RJ45, auto-crossover.
        • Wire type: 4-pair CAT5 or better structured cable.
        • Distance: up to 100m.
        • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
      • Indicators (LED)
        • Individual PoE On LEDs for each port.
        • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 90 BTU/Hr.

Agency Listings


CE Compliant

Accessories

Name Description
LINQ2 Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers
WM5 Magnetic Cable Tie Mounts
WM25 Magnetic Cable Tie Mounts
WM100 Magnetic Cable Tie Mounts
MM4 Mounting Magnets, Four (4) Quantity per Pack
MM8 Mounting Magnets, Eight (8) Quantity per Pack
MM12 Mounting Magnets, Twelve (12) Quantity per Pack
MM24 Mounting Magnets, Twenty Four (24) Quantity per Pack

Dimensions & Weight

Enclosure:
  • Compact Enclosure for Altronix power distribution and Mercury Boards
  • Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
  • Double knockouts (accommodate 0.75” and 1” conduit).
Weights (approximate):
  • Product Weigtht: 8.55 Lbs. (3.88 kg).
  • Shipping Weigtht: 9.8 Lbs. (4.45 kg).
