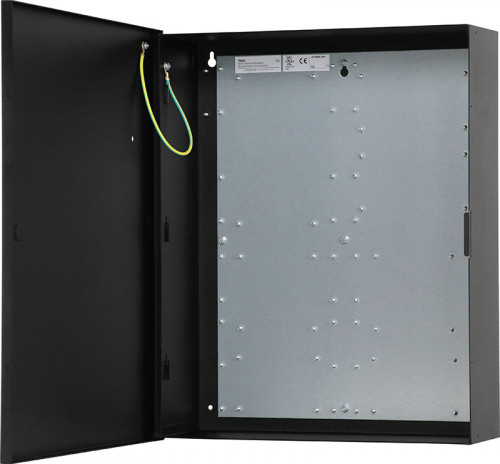

Trove1XX
Access and Power Integration Enclosure (no knockouts/venting holes), Requires compatible Trove1 Series Backplane
Trove1XX enclosures accommodate a variety of Altronix backplanes which support access controllers and accessories from the industry’s leading manufacturers, along with Altronix power distribution. These enclosures have no knockouts or venting holes for use in applications such as federal and military installations. Trove systems simplify board layout and wire management, reducing installation time and labor costs.
Specifications
Features
- 16 AWG powder coated steel
- No knockouts or venting holes
- Includes cam lock, tamper switch and mounting hardware
Environmental
- Humidity and Temperature conditions: 93%, +/-2% @ 32ºC +/-2ºC.
Agency Listings
CE Compliant
Accessories
| Name | Description |
|---|---|
| MM12 | Mounting Magnets, Twelve (12) Quantity per Pack |
| MM24 | Mounting Magnets, Twenty Four (24) Quantity per Pack |
| MM4 | Mounting Magnets, Four (4) Quantity per Pack |
| MM8 | Mounting Magnets, Eight (8) Quantity per Pack |
| WM100 | Magnetic Cable Tie Mounts |
| WM25 | Magnetic Cable Tie Mounts |
| WM5 | Magnetic Cable Tie Mounts |
Dimensions & Weight
Enclosure:
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 14.5"W x 18"H x 4.62"D (368.3 mm W x 457.2 mm H x 118 mm D).
- No knockouts or venting holes.
Weights (approximate):
- Product Weigtht: 11.8 Lbs. (5.35 kg).
- Shipping Weigtht: 15.5 Lbs. (6.83 kg).
