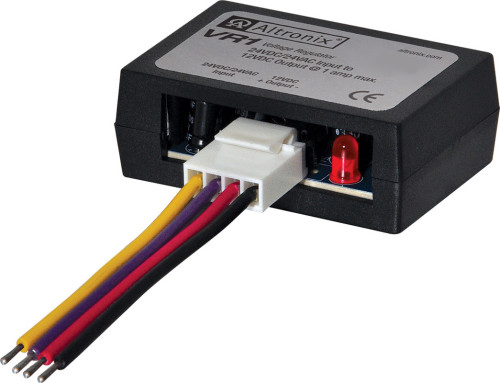

VR1

Voltage Regulator, Converts 24VAC/VDC to 12VDC @ 1A.

Model VR1 converts a 24VAC or 24VDC input into a regulated 12VDC @ 1A output.

Specifications

  • Input
    • Input 24VAC or 24VDC.
  • Output
    • 12VDC output.
    • 1A continuous supply current.
    • Filtered and electronically regulated output.
    • Built-in overload protection.
  • Visual Indicators
    • Power LED indicator.
  • Features
    • Modular connector/cable assembly facilitates ease of wiring.
    • Compact design allows for integration in a wide range of camera housings.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 6 BTU/Hr.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.38"W x 1"H x 1.62"D (60 mm W x 25 mm H x 41 mm D).
Weights (approximate):
  • Product Weigtht: 0.14 Lbs. (0.063 kg).
  • Shipping Weigtht: 0.15 Lbs. (0.068 kg).
