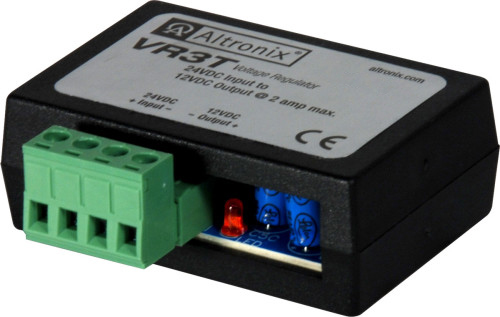

VR3T

Voltage Regulator, Converts 24VDC to 12VDC @ 2A, Terminal

VR3T converts a 24VDC input into a regulated 12VDC output.

Specifications

  • Input
    • 24VDC input.
  • Output
    • 12VDC @ 2A.
    • Electronically filtered and regulated output.
    • Built-in overload protection.
  • LED Indicators
    • Power LED.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 12 BTU/Hr.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.38"W x 1"H x 1.62"D (60 mm W x 25 mm H x 41 mm D).
Weights (approximate):
  • Product Weigtht: 0.13 Lbs. (0.06 kg).
  • Shipping Weigtht: 0.15 Lbs. (0.07 kg).
