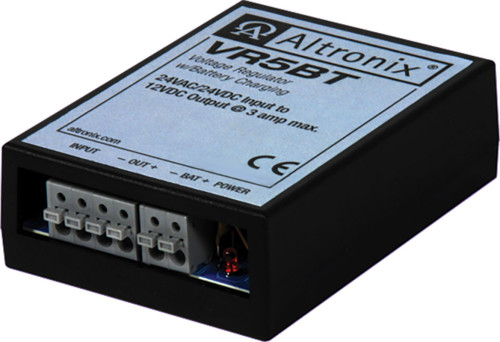

VR5BT

Voltage Regulator, Converts 24VAC/VDC to 12VDC @ 3A, Battery Charging, Terminal

VR5BT converts a 24VAC or 24VDC input into a regulated 12VDC output.

Specifications

  • Input
    • 24VAC or 24VDC input.
  • Output
    • 12VDC @ 3A max.
    • Electronically filtered and regulated output.
    • Built-in overload protection.
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • LED Indicators
    • Power LED.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 18 BTU/Hr.

Agency Listings


CE Compliant

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weigtht: 0.13 Lbs. (0.058 kg).
  • Shipping Weigtht: 0.15 Lbs. (0.068 kg).
