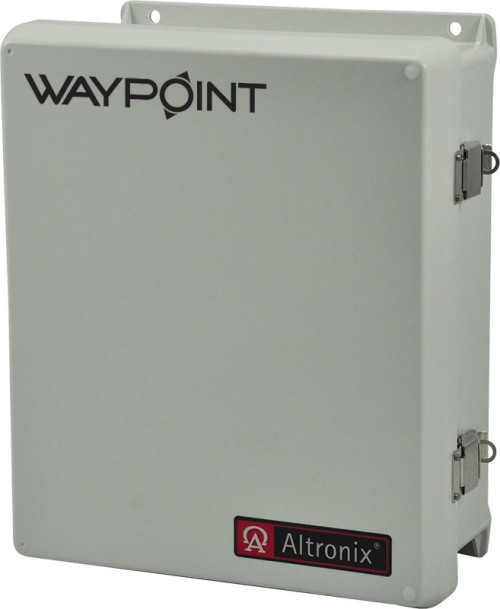

WayPoint10A4DU

CCTV Power Supply, Outdoor, Four (4) Class 2 Rated PTC protected power-limited outputs, 24VAC @ 4A or 28VAC @ 3.5A, 115/220VAC, WP3 Enclosure

WayPoint10A4DU Outdoor Power Supply provides 24VAC and/or 28VAC distributed via four (4) Class 2 Rated PTC protected power-limited outputs for powering CCTV Cameras, heaters, and other video accessories.

  • Input
    • Input: 115VAC, 50/60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.
  • Output
      • Output options:
        • a. 24VAC @ 4A max.
        • b. 28VAC @ 3.5A max.
    • Output PTCs rated @ 2.5A.
  • Visual Indicators
    • Individual power output LED indicators.
    • Illuminated master power switch.
  • Temperature
      • Operating Temperature:
        • 24VAC @ 4A output: - 40° C to 60°C ( - 40° F to 140° F);
        • 28VAC @ 3.5A output: - 40° C to 70°C ( - 40° F to 158° F).
    • Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
    • Relative Humidity: 85%, +/- 5%
    • BTU/Hr. (approx.): 50 BTU/Hr.
    • System AC input VA requirement: 115VA.
  • Operating Altitude
    • Operating Altitude: - 304.8 to 2000m. ( -1000 to 6,561.679 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
Information Technology Equipment (UL60950-22)
Download File
cUL Listed For:
Information Technology Equipment
Download File

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 10.32 Lbs. (4.68 kg).
  • Shipping Weight: 11.7 Lbs. (5.3 kg).
