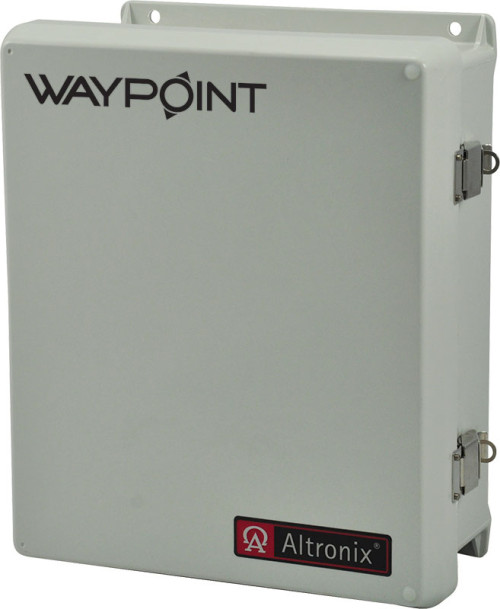

WayPoint17A8DU

CCTV Power Supply, Outdoor, Eight (8) Class 2 Rated PTC protected power-limited outputs, 24VAC @ 7.25A and/or 28VAC @ 6.25A, 115/220VAC, WP3 Enclosure

WayPoint17A8DU Outdoor Power Supply provides 24VAC or 28VAC distributed via eight (8) Class 2 Rated PTC protected power-limited outputs for powering CCTV Cameras, heaters, and other video accessories.

  • Input
    • Input: 115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1.0A.
  • Output
      • Output options:
        • a. 24VAC @ 7.25A max.
        • b. 28VAC @ 6.25A max.
    • Output PTCs rated @ 2.5A.
  • Visual Indicators
    • Individual power output LED indicators.
    • Illuminated master power switch.
  • Temperature
      • Operating Temperature:
        • 24VAC @ 7.25A output: - 40° C to 60° C ( - 40° F to 140° F).
        • 28VAC @ 6.25A output: - 40° C to 70° C ( - 40° F to 158° F).
    • Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
    • Relative Humidity: 85%, +/- 5%.
    • BTU/Hr. (approx.): 90 BTU/Hr.
    • System AC input VA requirement: 230VA.
  • Operating Altitude
    • - 304.8 to 2000m ( - 1000 to 6,561.679 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
Information Technology Equipment (UL60950-22)
Download File
cUL Listed For:
Information Technology Equipment
Download File

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 11.31"W x 13.31"H x 5.59"D (287 mm W x 338 mm H x 142 mm D).
Weights (approximate):
  • Product Weight: 13.45 Lbs. (6.1 kg).
  • Shipping Weight: 14.56 Lbs. (6.6 kg).
