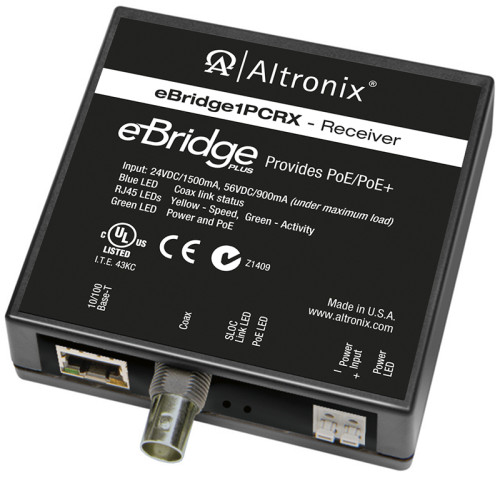

eBridge1PCRX

EoC Single Port Receiver, 25Mbps, Generates PoE/PoE+, 24/56VDC, Requires Compatible Transceiver

Altronix eBridge1PCRX is a single port EoC Receiver that transmits data and power over coax cable. eBridge1PCRX generates PoE/PoE+ up the coax to an eBridge1PCT, eBridge1PCTX or eBridge1ST transceiver. The transceiver, in turn, delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from headend to the edge device/camera is 700m, taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.

Specifications

  • Input
    • 24VDC to 56VDC Class 2 power supply (polarity observed).
  • Power Consumption (under maximum load)
    • 24VDC/1,500mA, 56VDC/900mA.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
  • Coax
    • Distance: up to 500m for power delivery of coax.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge transceiver.
    • Throughput is rated to pass 25Mbps of data at distances up to 500m with proper headend equipment which supports Megapixel, HD720, HD1080.
    • Connectivity: BNC, RG-59/U or similar.
  • LED Indicators
    • Blue - Coax link connection.
    • Green - PoE ON. Green - Power ON.
    • Yellow and Green - (RJ45) IP Link status, 10/100Base-T/active.
  • Environmental
      • Operating Temperature:
        • 15W: - 20° C to +45° C ( - 4° F to 113° F ).
        • 30W for 24VDC: - 20° C to +37° C ( - 4° F to 98.6° F ).
        • 30W for 48VDC: - 20° C to +45° C ( - 4° F to 113° F ).
      • Storage Temperature:
        • -20° to 70° C ( -4° to 158° F).
        • Relative humidity: 85%, +/- 5%, non-condensing.
  • BTU/Hr. (approx.):
    • 24VDC: 18 BTU/Hr.
    • 56VDC: 26 BTU/Hr.
  • Operating Altitude
    • -304.8 to 2000m ( - 1000 to 6,561.679 ft.).
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

C-TICK Compliant

Accessories

Name Description
eBridge1PCT EoC Single Port Transceiver, 25Mbps, Passes PoE from Receiver, Requires Compatible Receiver
eBridge1PCTX EoC Single Port Transceiver, 25Mbps, Passes PoE/PoE+ from Receiver, Requires Compatible Receiver
eBridge1ST EoC Single Port Small Transceiver, 25Mbps, Passes PoE/PoE+ from Receiver, Requires Compatible Receiver
NetWay1D Midspan Injector, Single Port, 10/100/1000, PoE/PoE+/Hi-PoE or 56VDC Aux. Output, 60W, 115/230VAC
VB6 Voltage Booster, Converts 24VAC or 24VDC to 56VDC @ 30W, 2 Outputs

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weigtht: 0.275 Lbs. (0.125 kg).
  • Shipping Weigtht: 0.6 Lbs. (0.27 kg).
