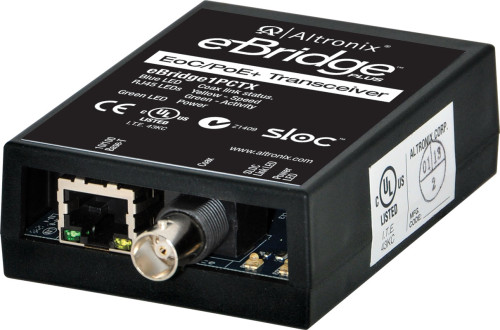

eBridge1PCTX

EoC Single Port Transceiver, 25Mbps, Passes PoE/PoE+ from Receiver, Requires Compatible Receiver

eBridge1PCTX is a CAT5 to Coax cable Ethernet adapter that delivers data and power over the coax cable in a PoE compliant format. The transceiver enables fast 10/100Base-T Ethernet digital communication to be transmitted over Coax cable. eBridge receiver sends power over the coax to the eBridge1PCTX transmitter under PoE protocol. The eBridge1PCTX, in turn, delivers that PoE compliant power to a PoE enabled camera or IP device. These plug and play units facilitate system upgrades from analog to IP cameras/ devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/ PoE Class, pg. 3). A maximum range from headend to the PoE camera/device is 700m, taking into consideration that up to 100m of structured cable may be deployed at each end.

Specifications

  • Input
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) from eBridge receivers.
  • Compatible Receivers:
    • eBridge1PCRM, eBridge4PCRM, eBridge8PCRM, eBridge16PCRM.
    • eBridge1PCRX, eBridge4PCRX, eBridge8PCRX, eBridge16PCRX.
    • eBridge8E.
    • Visit www.altronix.com for the latest compatibility list.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) Delivered to camera by eBridge1PCTX. Power provided by eBridge Plus receiver to eBridge1PCTX by PoE protocol.
  • Coax
    • Distance: up to 500m for power delivery of coax.
    • Throughput is rated to pass 25Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
    • Connectivity: BNC, RG-59/U or similar.
  • LED Indicators
    • Blue LED - Coax link connection.
    • Green LED - PoE from eBridge1PCRX.
  • Environmental
      • Operating Temperature:
        • For 15W: - 40° C to 75° C ( - 40° F to 167° F).
        • For 30W: - 40° C to 49° C ( - 40° F to 120.2° F).
      • Storage Temperature:
        • - 40° C to 75° C ( - 40° F to 167° F).
        • Relative humidity: 85%, +/- 5%, non-condensing.
  • Operating Altitude
    • - 304.8 to 2,000m (-1000 to 6,561.679 ft.).
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.

Agency Listings

UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

C-TICK Compliant

Accessories

Name Description
eBridge1PCRM EoC Single Port Receiver, 25Mbps, Passes PoE/PoE+, Requires Compatible Transceivers
eBridge1PCRX EoC Single Port Receiver, 25Mbps, Generates PoE/PoE+, 24/56VDC, Requires Compatible Transceiver
eBridge4PCRX EoC 4 Port Receiver, 25Mbps per port, Generates PoE/PoE+, 48-56 VDC, Requires Compatible Transceiver

Dimensions & Weight

Enclosure:
  • Modular plastic case.
  • Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Weights (approximate):
  • Product Weigtht: 0.25 Lbs. (0.11 kg).
  • Shipping Weigtht: 0.6 Lbs. (0.27 kg).
