eFlow6N

Power Supply Charger, Single Output, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

Altronix eFlow6N is a power supply/charger converts a 120VAC 60Hz input into a single Class 2 powerlimited output. Power supply/charger is selectable for 12VDC or 24VDC with a total of 6A max. supply current. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

  • Input
    • 120VAC, 60Hz, 3.5A.
    • Input fuse: 5A/250V.
  • Output
    • 12VDC or 24VDC @ 6.0A supply current.
    • Auxiliary Power-Limited output rated @ 1A (unswitched).
    • Over Voltage Protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current: 1.54A.
    • Automatic switch over to stand-by battery when AC fails.
    • Transfer to stand-by battery power is instantaneous with no interruption.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail & presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 37 BTU/Hr.
        • 24VDC: 74 BTU/Hr.
    • System AC input VA requirement: 420VA.
  • Visual Indicators
    • Green AC Power LED indicates 120VAC present.
    • AC input and DC output LED indicators.
  • Additional Features
    • Short circuit and overload protection.

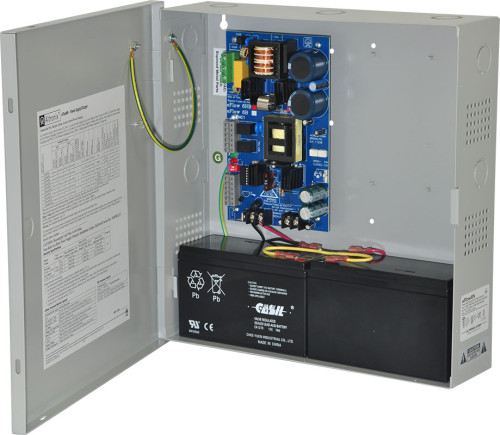

    • Unit is complete with power supply, enclosure, battery leads and cam lock.
UL Listed For:
Access Control System Units (UL294)
Power Supplies for use with Burglar Alarm Systems (UL603)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.

CSFM - California State Fire Marshal Approved

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.5 Lbs. (2.95 kg).
  • Shipping Weight: 7.4 Lbs. (3.36 kg).
Print
*Batteries sold separately
