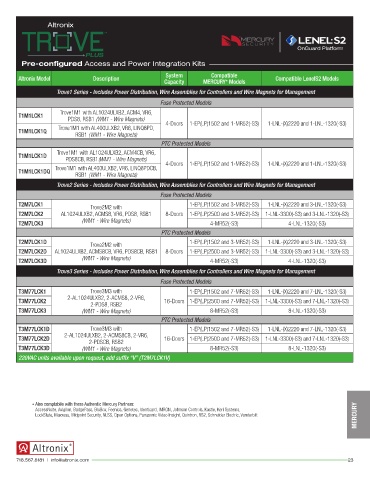

Page 23 - NetWay Spectrum Brochure

Altronix

OnGuard Platform

Pre-configured Access and Power Integration Kits

System Compatible
Altronix Model Description Compatible LenelS2 Models
Capacity MERCURY* Models
Trove1 Series - Includes Power Distribution, Wire Assemblies for Controllers and Wire Magnets for Management
Fuse Protected Models
Trove1M1 with AL1024ULXB2, ACM4, VR6,
T1M1LCK1
PDS8, RSB1 (WM1 - Wire Magnets) 4-Doors 1-EP(LP)1502 and 1-MR52(-S3) 1-LNL-(X)2220 and 1-LNL-1320(-S3)
Trove1M1 with AL400ULXB2, VR6, LINQ8PD,
T1M1LCK1Q
RSB1 (WM1 - Wire Magnets)
PTC Protected Models
Trove1M1 with AL1024ULXB2, ACM4CB, VR6,
T1M1LCK1D
PDS8CB, RSB1(WM1 - Wire Magnets)
4-Doors 1-EP(LP)1502 and 1-MR52(-S3) 1-LNL-(X)2220 and 1-LNL-1320(-S3)
Trove1M1 with AL400ULXB2, VR6, LINQ8PDCB,
T1M1LCK1DQ
RSB1 (WM1 - Wire Magnets)
Trove2 Series - Includes Power Distribution, Wire Assemblies for Controllers and Wire Magnets for Management
Fuse Protected Models
T2M7LCK1 Trove2M2 with 1-EP(LP)1502 and 3-MR52(-S3) 1-LNL-(X)2220 and 3-LNL-1320(-S3)
T2M7LCK2 AL1024ULXB2, ACMS8, VR6, PDS8, RSB1 8-Doors 1-EP(LP)2500 and 3-MR52(-S3) 1-LNL-3300(-S3) and 3-LNL-1320(-S3)
(WM1 - Wire Magnets)
T2M7LCK3 4-MR52(-S3) 4-LNL-1320(-S3)
PTC Protected Models
T2M7LCK1D Trove2M2 with 1-EP(LP)1502 and 3-MR52(-S3) 1-LNL-(X)2220 and 3-LNL-1320(-S3)
T2M7LCK2D AL1024ULXB2, ACMS8CB, VR6, PDS8CB, RSB1 8-Doors 1-EP(LP)2500 and 3-MR52(-S3) 1-LNL-3300(-S3) and 3-LNL-1320(-S3)
T2M7LCK3D (WM1 - Wire Magnets) 4-MR52(-S3) 4-LNL-1320(-S3)
Trove3 Series - Includes Power Distribution, Wire Assemblies for Controllers and Wire Magnets for Management
Fuse Protected Models
T3M77LCK1 Trove3M3 with 1-EP(LP)1502 and 7-MR52(-S3) 1-LNL-(X)2220 and 7-LNL-1320(-S3)
2-AL1024ULXB2, 2-ACMS8, 2-VR6,
T3M77LCK2 16-Doors 1-EP(LP)2500 and 7-MR52(-S3) 1-LNL-3300(-S3) and 7-LNL-1320(-S3)
2-PDS8, RSB2
T3M77LCK3 (WM1 - Wire Magnets) 8-MR52(-S3) 8-LNL-1320(-S3)
PTC Protected Models
T3M77LCK1D Trove3M3 with 1-EP(LP)1502 and 7-MR52(-S3) 1-LNL-(X)2220 and 7-LNL-1320(-S3)
2-AL1024ULXB2, 2-ACMS8CB, 2-VR6,
T3M77LCK2D 2-PDSCB, RSB2 16-Doors 1-EP(LP)2500 and 7-MR52(-S3) 1-LNL-3300(-S3) and 7-LNL-1320(-S3)
T3M77LCK3D (WM1 - Wire Magnets) 8-MR52(-S3) 8-LNL-1320(-S3)
220VAC units available upon request, add suffix “V” (T2M7LCK1V)

* Also comptabile with these Authentic Mercury Partners:
AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems,
LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, Schneider Electric, Vanderbilt MERCURY
