AL1012ULACM

Access Power Controller w/ Power Supply/Charger, 8 Fused Relay Outputs, 12VDC @ 10A, FAI, 115VAC, BC400 Enclosure

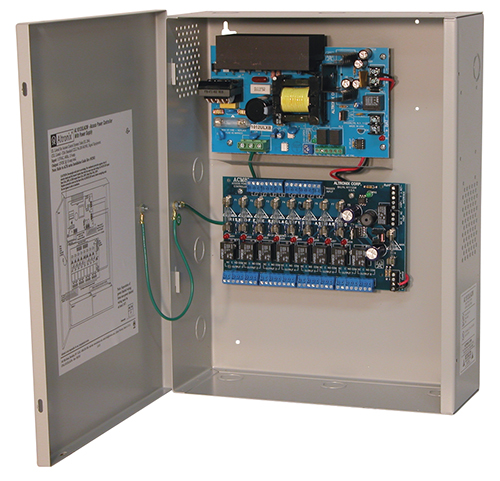

Altronix AL1012ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10A continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1012ULACMCB is a PTC protected version of this unit.

  • Input
    • Input 115VAC 60Hz rated @ 2.6A.
      • Power supply input options:
        • a) One (1) common power input for ACM8/ACM8CB and lock power (factory installed).
        • b) Two (2) isolated power inputs - One (1) to power the ACM8/ACM8CB and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10A total).
    • Eight (8) Access Control System trigger inputs.
      • Input options:
        • a) Eight (8) normally open (NO) inputs.
        • b) Eight (8) open collector inputs.
        • c) Any combination of the above.
  • Output
    • 12VDC @ 10A supply current.
    • Eight (8) independently controlled outputs.
      • Output options:
        • Eight (8) Fail-Safe and/or Fail-Secure power outputs.
        • Eight (8) auxiliary power outputs (unswitched)
      • Output ratings:
        • Fuses are rated @ 3.5A.
    • Filtered and electronically regulated outputs (built-in power supply).
    • ACM8 board main fuse is rated at 10A.
  • Supervision
      • AC fail supervision (form "C" contacts).
        • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery and battery presence supervision (form "C" contact).
  • Features
    • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
      • Fire Alarm disconnect input options:
        • a) Normally open (NO) or normally closed (NC) dry contact input.
        • b) Polarity reversal input from FACP signaling circuit.
    • Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC not evaluated by UL).
    • Short circuit and thermal overload protection.
  • Visual Indicators
    • Red LEDs indicate outputs are triggered (relays energized).
    • Green LED indicates FACP disconnect is triggered.
    • AC input and DC output LED indicators.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Zero voltage drop when unit switches over to battery backup (AC failure condition).
    • Battery fail and battery presence supervision (form "C" contact).
    • (Batteries are sold separately).
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
    • BTU/Hr. (approx.): 61 BTU/Hr.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment
Download File
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 10.7 Lbs. (4.85 kg).
  • Shipping Weight: 12 Lbs. (5.44 kg).
