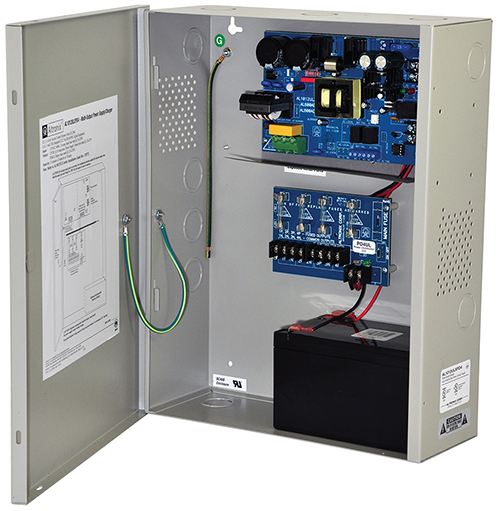

AL1012ULXPD4

AL1012ULXPD4 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into four (4) 12VDC non-power limited outputs.

Input
- Input 115VAC, 60Hz, 1.9A.
- Input fuse rated @ 5A/250V.
Output
- 12VDC output.
- 10A continuous supply current.
- Four (4) fuse protected outputs.
- Output fuses are rated @ 3.5A/250VAC.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current: 0.7A.
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when switched over to battery backup.
- (Batteries are sold separately).
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Temperature
- Operating: 0 to 49° C (32 to 120° F ).
- Storage: - 20 to 70° C ( - 4 to 158° F).
- Relative Humidity: 85% +/- 5%
- BTU/Hr. (approx.): 61 BTU/Hr.
- System AC input VA requirement: 299VA.

Access Control System Units (UL294)

CSA Standard C22.2 No.205-M1983, Signal Equipment

NFPA 72 Compliant

Wall mount enclosure for indoor use.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.
