AL1024ACMCBJ220

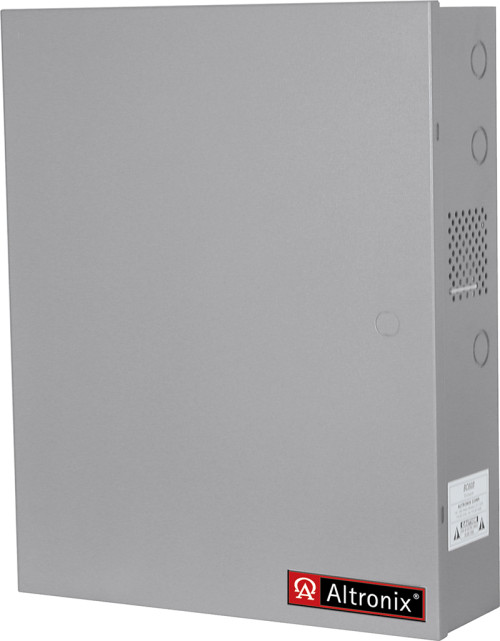

Access Power Controller w/ Power Supply/Charger, 8 PTC Outputs, 24VDC @ 10A, 220VAC, BC600 Enclosure

Altronix AL1024ACMCBJ220 distribute and switch power to access control systems and accessories. It converts a 220VAC 50/60Hz input into eight (8) independently controlled 24VDC PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

  • Input
    • Voltage: 220VAC (range 198VAC - 256VAC) 50/60Hz rated @ 10A
    • Fuse Rating: 6.3A/250V
      • Power supply input options:
        • a) One (1) common power input for ACM8CB and lock power (factory installed).
        • b) Two (2) isolated power inputs - One (1) to power the ACM8CB and one (1) for lock accessory power (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total).
    • Eight (8) Access Control System trigger inputs.
      • Input options:
        • a) Eight (8) normally open (NO) inputs.
        • b) Eight (8) open collector inputs.
        • c) Any combination of the above.
  • Output
    • 12VDC or 24VDC outputs.
    • Power-limited outputs.
    • Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs.
    • Eight (8) auxiliary power outputs (unswitched).
    • Output PTCs are rated @ 2.5A.
    • Filtered and electronically regulated outputs (built-in power supply).
  • Features
    • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
      • Fire Alarm disconnect input options:
        • a) Normally open (NO) or normally closed (NC) dry contact input.
        • b) Polarity reversal input from FACP signaling circuit.
    • Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC).
    • Short circuit and thermal overload protection.
    • AC fail supervision (form "C" contact).
  • Visual Indicators
    • Red LEDs indicate outputs are triggered (relays energized).
    • Green LED indicates FACP disconnect is triggered.
    • AC input and DC output LED indicators.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • AC input and DC output LED indicators.
    • Zero voltage drop when unit switches over to battery backup (AC failure condition).
    • Battery fail and battery presence supervision (form "C" contact).
    • (Batteries are sold separately).
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 24VDC: 123 BTU/Hr.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/18AH Batteries.
  • Dimensions 14.5"W x 18"H x 4.62"D (368 mm W x 457 mm H x 118 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 14.9 Lbs. (6.76 kg).
  • Shipping Weight: 16.1 Lbs. (7.3 kg).
