AL1024ULXPD16CBR

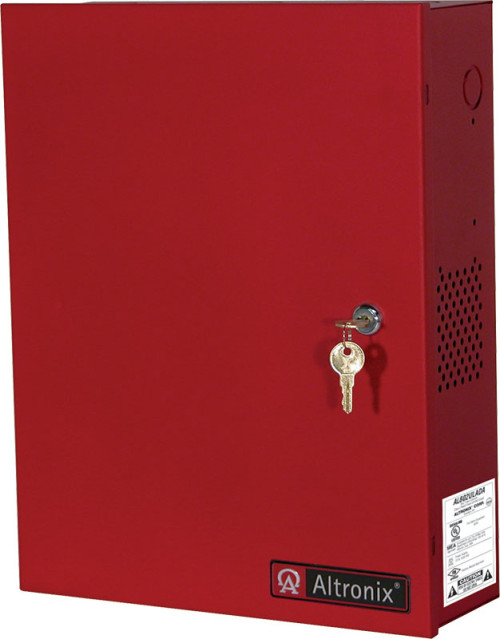

Power Supply Charger, 16 PTC Class 2 Outputs, 24VDC @ 10A, 115VAC, Red BC400 Enclosure

AL1024ULXPD16CBR is a multi-output power supply/charger which converts a 115VAC, 60Hz input into sixteen (16) 24VDC Class 2 Rated power-limited outputs.

Input
- Input 115VAC, 60Hz, 4.2A.
- Input fuse rated @ 3.5A/250V.
Output
- 24VDC output.
- 10A of continuous supply current for Access Control applications.
- 8A of continuous supply current for Fire Alarm applications.
- Sixteen (16) Class 2 Rated PTC protected powerlimited outputs (auto-resettable).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Maximum charge current: 3.6A.
- Zero voltage drop when switched over to battery backup.
- (Batteries are sold separately).
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input and DC output LED indicators.
Temperature
- Operating 0 to 49° C ( 32 to 120° F ).
- Storage - 20 to 70° C ( -4 to 158° F ).
- Relative Humidity 85% +/- 5%
- BTU/Hr. (approx.): 123 BTU/Hr.
- System AC input VA requirement: 483VA.

UL Listed For:

Access Control System Units (UL294)

Download File

Power Supplies for Fire Protective Signaling Systems (UL1481)

Download File

cUL Listed For:

CSA Standard C22.2 No.205-M1983, Signal Equipment

Download File

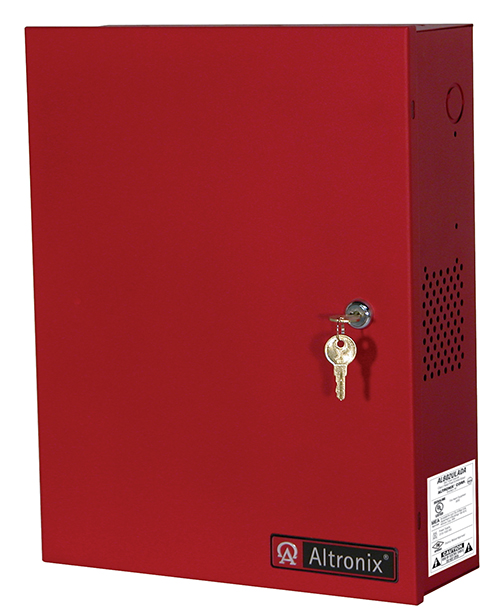

Enclosure:

Wall mount enclosure for indoor use.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.
