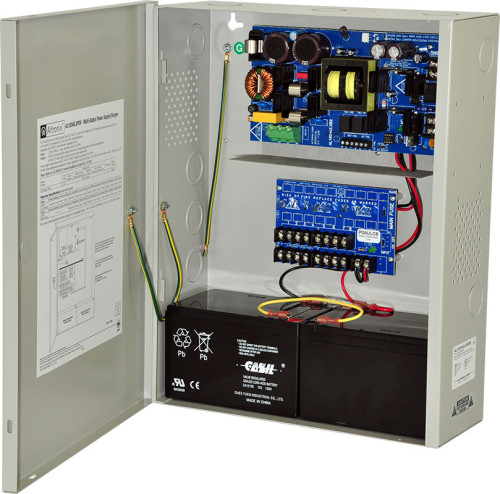

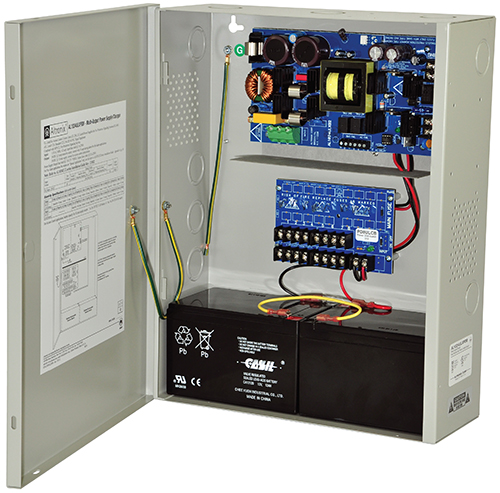

AL1024ULXPD8CB

Power Supply Charger, 8 PTC Class 2 Outputs, 24VDC @ 10A, 115VAC, BC400 Enclosure

AL1024ULXPD8CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 24VDC Class 2 Rated power limited outputs.

  • Input
    • Input 115VAC, 60Hz, 4.2A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 24VDC output.
    • 10A of continuous supply current for
  • Access Control applications.
    • 8A of continuous supply current for Fire Alarm applications.
    • Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 3.6A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0 to 49° C (32 to 120° F ).
    • Storage: - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 123 BTU/Hr.
    • System AC input VA requirement: 483VA.
UL Listed For:
Access Control System Units (UL294)
Power Supplies for Fire Protective Signaling Systems (UL1481)
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment

NFPA 72 Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 9.5 Lbs. (4.3 kg).
  • Shipping Weight: 11.8 Lbs. (5.35 kg).
Print
*Batteries sold separately
