AL175220

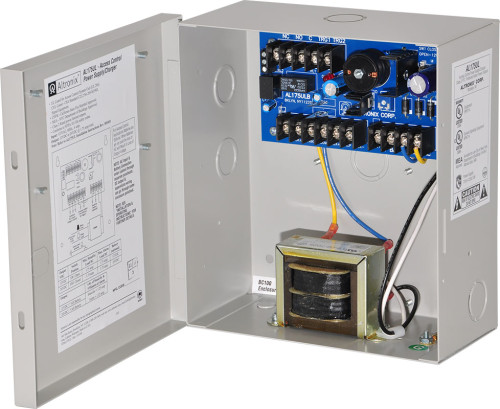

Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, 230VA, BC100 Enclosure

Altronix AL175220 Switching Power Supply/Charger converts a 220VAC 50/60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs.

  • Input
    • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.3A.
    • Access control trigger input.
  • Output
    • 12VDC or 24VDC selectable outputs.
    • 1.75A supply current.
    • Two (2) power-limited outputs.
    • Fail-Safe/Fail-Secure lock output (switched).
    • Auxiliary power output (unswitched).
    • PTC protected outputs, rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 400mA.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 11 BTU/Hr.
        • 24VDC: 22 BTU/Hr.
    • System AC input VA requirement: 66VA.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 5.1 Lbs. (2.31 kg).
  • Shipping Weight: 5.6 Lbs. (2.54 kg).
