AL176UL

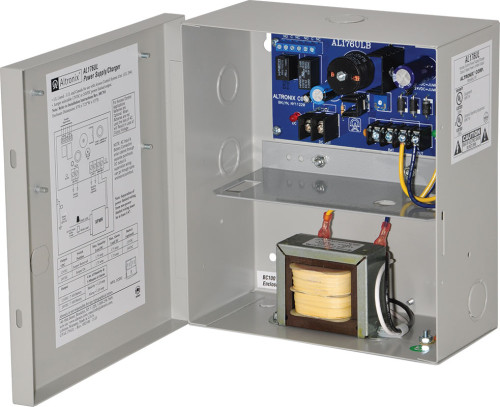

Access Control Power Supply Charger, Single PTC Class 2 Output, 12/24VDC @ 1.75A, 115VAC, BC100 Enclosure

Altronix AL176UL is a Single Output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.

  • Input
    • Input 115VAC/60Hz, 0.6A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 1.75A supply current.
    • Class 2 Rated power limited output.
    • PTC protected outputs, rated @ 2.5A.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.4A.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0ºC to 49ºC (32ºF to 120ºF).
    • Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 11 BTU/Hr.
        • 24VDC: 22 BTU/Hr.
    • System AC input VA requirement: 69VA.
UL Listed For:
Access Control System Units (UL294)
Download File
cUL Listed For:
CSA Standard C22.2 No.205-M1983, Signal Equipment
Download File
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 5.1 Lbs. (2.31 kg).
  • Shipping Weight: 5.6 Lbs. (2.54 kg).
