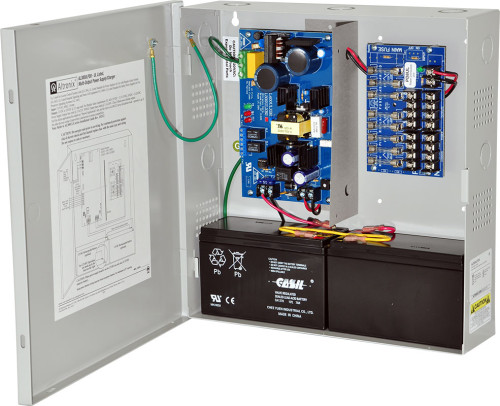

AL300PD8220

Input

• Nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.7A.
• Input fuse rated @ 3.5A/250V.

Output

• 12VDC or 24VDC selectable output.
• 12VDC or 24VDC @ 2.5A supply current.
• Eight (8) fuse protected outputs.
• Outputs are rated @ 3.5A.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Charging

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current: 0.7A.
• Zero voltage drop when switched over to battery backup.
• (Batteries are sold separately).

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Electrical

• Temperature:

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).

• Relative Humidity: 85% +/-5%.

• BTU/Hr. (approx.):

  • 12VDC: 15 BTU/Hr.
  • 24VDC: 31 BTU/Hr.

• System AC input VA requirement: 402.5VA.
