AL300ULXPD16R

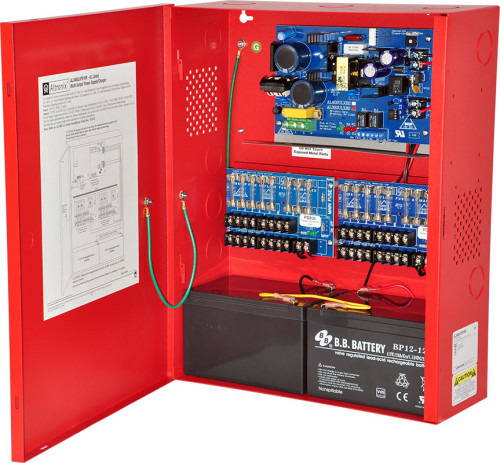

Power Supply Charger, 16 Fused Outputs, 12/24VDC @ 2.5A, 115VAC, Red BC400 Enclosure

AL300ULXPD16R is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) Class 2 Rated 12VDC or 24VDC power limited outputs.

Input
- Input 115VAC, 60Hz, 3.5A.
- Input fuse rated @ 3.5A/250V.
Output
- 12VDC or 24VDC selectable output.
- Burglar Alarm Applications (UL 603):
- 12VDC = 10VDC-13.2VDC.
- 24VDC = 20VDC-26.4VDC.
- 12VDC or 24VDC @ 2.5A supply current.
- Sixteen (16) Class 2 Rated fuse protected power limited outputs.
- Outputs are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
- Maximum charge current: 0.7A.
- Zero voltage drop when switched over to battery backup.
- (Batteries are sold separately).
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
Visual Indicators
- AC input, DC output and Battery LED indicators.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70°C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- System AC input VA requirement: 402.5VA.

UL Listed For:

Access Control System Units (UL294)

Download File

Power Supplies for use with Burglar Alarm Systems (UL603)

Download File

Hospital Signaling and Nurse Call Equipment (UL1069)

Download File

Power Supplies for Fire Protective Signaling Systems (UL1481)

Download File

cUL Listed For:

CSA Standard C22.2 No.205-M1983, Signal Equipment

Download File

NFPA 72 Compliant

Enclosure:

Wall mount enclosure for indoor use.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.
