AL300XPD16220

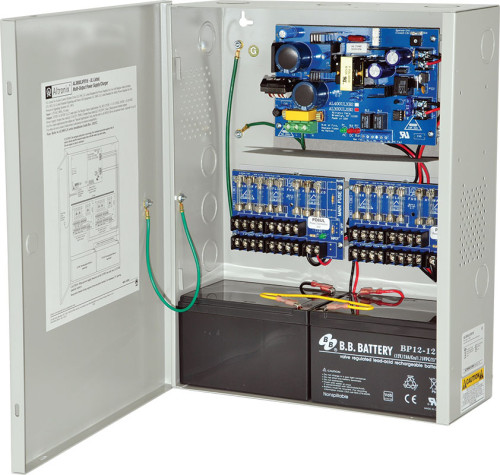

Power Supply Charger, 16 Fused Outputs, 12/24VDC @ 2.5A, 220VAC, BC400 Enclosure

AL300XPD16220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into sixteen (16) 12VDC or 24VDC outputs.

  • Input
    • Nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz, 1.7A.
    • Input fuse rated @ 3.5A/250V.
  • Output
    • 12VDC or 24VDC selectable output.
    • 12VDC or 24VDC @ 2.5A supply current.
    • Sixteen (16) fuse protected outputs.
    • Outputs are rated @ 3.5A.
    • Filtered and electronically regulated outputs.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Temperature
    • Operating: 0 to 49° C (32 to 120° F ).
    • Storage: - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity: 85% +/- 5%
      • BTU/Hr. (approx.):
        • 12VDC or 12VAC: 15 BTU/Hr.
        • 24VDC or 24VAC: 30 BTU/Hr.
    • System AC input VA requirement: 374VA.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 8.55 Lbs. (3.88 kg).
  • Shipping Weight: 10.85 Lbs. (4.92 kg).
Print
*Batteries sold separately
