AL400ULB

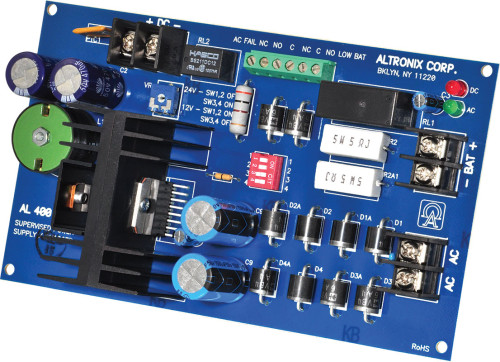

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 4A, 28VAC, Board

Altronix AL400ULB UL Recognized power supply/charger converts a 28VAC input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes AC fail supervision and low battery supervision.

  • Input
    • Input 28VAC, 175VA.
  • Output
    • 12VDC or 24VDC selectable output.
    • 12VDC @ 4A or 24VDC @ 3A supply current.
    • Class 2 Rated power limited output.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current: 600mA.
    • Automatic switch over to stand-by battery when AC fails.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Environmental
      • Temperature
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
      • Relative Humidity
        • Relative Humidity: 85% +/- 5%.
      • BTU/Hr. (approx.):
        • 12VDC: 25 BTU/Hr.
        • 24VDC: 37 BTU/Hr.
UL Listed For:
Access Control System Units (UL294)
View Certificate
Power Supplies for use with Burglar Alarm Systems (UL603)
View Certificate
Power Supplies for Fire Protective Signaling Systems (UL1481)
View Certificate

UL Recognized

NFPA 72 Compliant

TAA Compliant

NDAA Compliant

BAA Compliant
Dimensions (approximate):
  • 4.5"W x 7.05"L x 1.6"H (102.9 mm W x 179.1 mm L x 40 mm H).
Weights (approximate):
  • Product Weight: 0.65 Lbs. (0.29 kg).
  • Shipping Weight: 0.8 Lbs. (0.36 kg).
