AL600X220

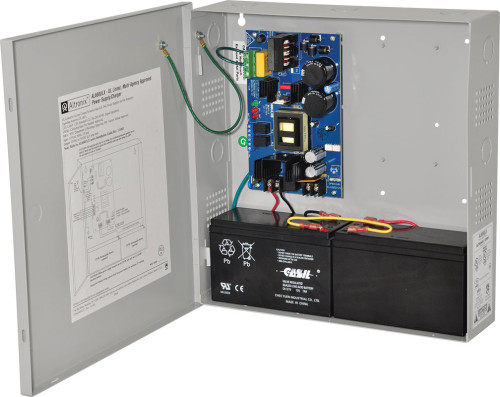

Power Supply Charger, Single Class 2 Output, 12/24VDC @ 6A, 220VAC, BC300 Enclosure

AL600X220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 12VDC or 24VDC output.

  • Input
    • Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.
  • Output
    • 12VDC or 24VDC selectable output.
    • 6A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Maximum charge current: 0.7A.
    • Zero voltage drop when switched over to battery backup.
    • (Batteries are sold separately).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery supervision (form "C" contacts).
    • Battery presence supervision (form "C" contacts).
  • Visual Indicators
    • AC input, DC output and BAT trouble.
  • Temperature
    • Operating: 0 to 49° C (32 to 120° F ).
    • Storage: - 20 to 70° C ( - 4 to 158° F).
    • Relative Humidity: 85% +/- 5%
      • BTU/Hr. (approx.):
        • 12VDC or 12VAC: 37 BTU/Hr.
        • 24VDC or 24VAC: 74 BTU/Hr.
    • System AC input VA requirement: 330VA.

CE Compliant
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 7.5 Lbs. (3.2 kg).
  • Shipping Weight: 8.9 Lbs. (4.1 kg).
Print
*Batteries sold separately
