ALTV244ULCB

CCTV Power Supply, 4 PTC Class 2 Outputs, 24/28VAC @3.5A, BC100 Enclosure

ALTV244ULCB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • 115VAC, 50/60Hz, 0.9A.
  • Output
    • Four (4) PTC protected auto-resettable outputs.
    • 24VAC @ 3.5A (85VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 3A (85VA) supply current (0.75A per device, 2.5A max.).
    • Outputs are rated @ 2.5A.
    • Surge suppression.
  • Features
    • Secondary fuse rated @ 5A/250V.
    • AC power LED.
    • Power ON/OFF switch.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 43 BTU/Hr.
    • System AC input VA requirement: 103.5VA.
UL Listed For:
Commercial CCTV Equipment (UL2044)
Download File
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment
Download File

CE Compliant

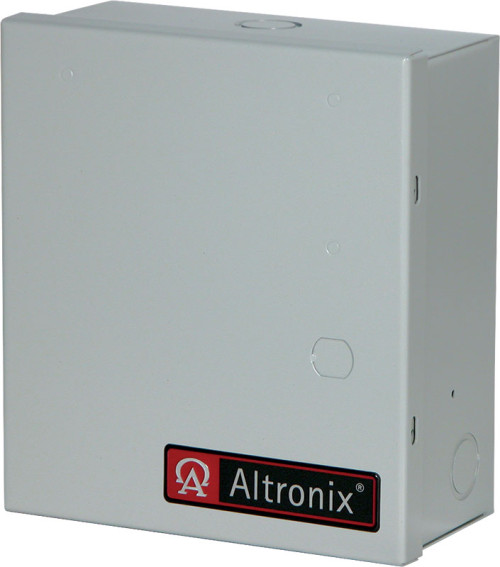

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.4 Lbs. (2.9 kg).
  • Shipping Weight: 7 Lbs. (3.2 kg).
