ALTV615DC616ULCB

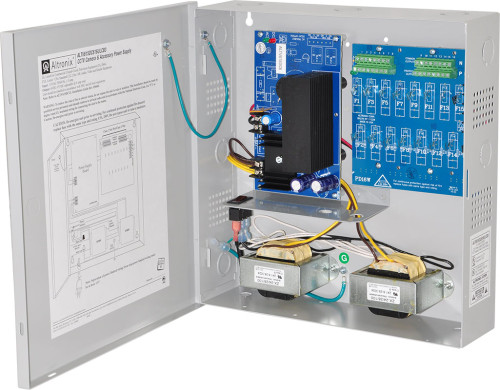

CCTV Power Supply, 16 PTC Class 2 Outputs, 6-15VDC @ 6A, 115VAC, BC300 Enclosure

ALTV615DC616ULCB provide 6VDC to 15VDC distributed via sixteen (16) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input
    • Input 115VAC, 50/60 Hz, 0.9A.
  • Output
    • Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
    • 6VDC to 15VDC field adjustable.
    • 6A total continuous supply current (0.375A per device, 2.5A max.).
    • Outputs are rated @ 2.5A.
    • Filtered and electronically regulated outputs.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 18-46 BTU/Hr.
    • System AC input VA requirement: 103.5VA.
  • Features
    • AC input and DC output LED indicators.
    • Illuminated power disconnect circuit breaker with manual reset.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.
UL Listed For:
Commercial CCTV Equipment (UL2044)
Download File
cUL Listed For:
CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment
Download File
Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 14.3 Lbs. (6.49 kg).
  • Shipping Weight: 14.8 Lbs. (6.71 kg).
