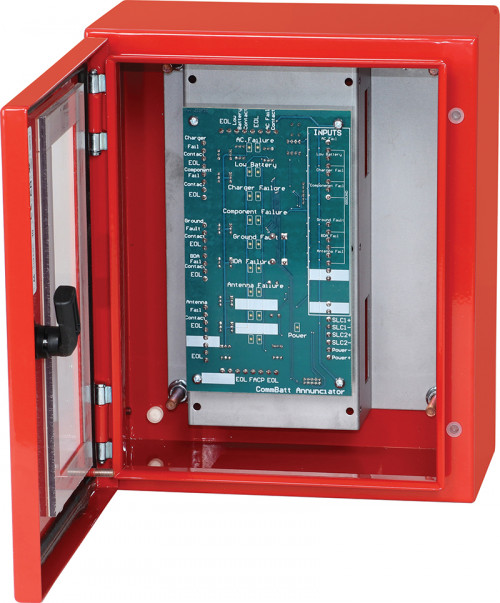

ANC1BBU

Remote Annunciator

Altronix CommBatt, ANC1BBU Annunciator is designed to provide compliance with the requirements of UL 2524 for in-building 2 Way Emergency Radio Communication Systems. It allows local and remote annunciation of various trouble conditions of BDA (Bi-Directional Amplifier) and BBU (Battery Backup Unit) and reporting those conditions to the FACP through the separate set of dry contacts, visual and audible indicators.

Input
- Voltage: 12-24 VDC, 400mA input power
- Input fuse: 2A.
Supervised Inputs
- Nine (9) 10K EOL supervised inputs to connect to power supply and other equipment that require annunciation of trouble conditions:
- - AC Fail
- - Low Battery
- - Charger Fail
- - Component Fail
- - RF Emitter Failure
- - Donor Antenna Disconnect
- - Donor Antenna Malfunction
- - RF Emitter Component Failure
Relay Outputs (Dry NC Contacts Relays)
- Ten (10) Form “C” output contacts to connect to FACP and other monitoring equipment with convenient end of line resistor wiring terminals.
- Use to report trouble conditions to FACP or other equipment:
- - AC Fail
- - Low Battery
- - Charger Fail
- - Component Fail
- - RF Emitter Failure
- - Donor Antenna Disconnect
- - Donor Antenna Malfunction
- - FACP Reporting
- - Communication Failure
Indicators
- 10 bicolor visual indicators of trouble conditions visible through the observation window of the enclosure.
Physical and Environmental
- NEMA-4, UL Listed stainless steel red powder coated wall mount enclosure.
Temperature
- Operating: 0ºC to 49ºC (32ºF to 120ºF)
- Storage: – 20ºC to 70ºC (– 4ºF to 158ºF)
Relative Humidity
- 85% +/– 5%
