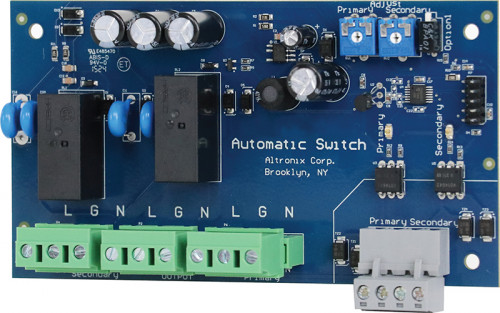

Circ1ATS

High Voltage AC Automatic Transfer Switch. Board

Altronix Circ1ATS is a High Voltage Redundant automatic transfer switch that can be added to any Altronix power supply with a high voltage input. This unit accepts connections from two (2) Independent High Voltage AC sources (Primary and Secondary) and provides a single redundant High Voltage AC Output. If AC Power is lost on the Primary input, the Circ1ATS automatically transfers to the Secondary AC Power input without delay, ensuring that system security is maintained.

  • Input
    • Two (2) Independent AC Inputs: 120 or 240VAC up to 10A each
  • Output
    • One (1) AC output: 120 or 240VAC up to 10A
  • Features
    • Removeable AC Terminal Blocks
    • Brownout Threshold Adjustment
    • Restore Delay Adjustment
    • DIN Rail mountable (DNP1)
  • Supervision
      • AC Failure (Primary and Secondary Inputs)
        • Form “A” Normally Closed contacts
  • LED Indicators
      • Input
        • LED Indicators of Primary and Secondary Power
  • Electrical
      • Temperature:
        • Operating: 0º C to 49º C (32º F to 120º F).
        • Storage: – 20º C to 70º C (– 4º F to 158º F).
    • Relative Humidity: 85% +/- 5%.
Dimensions (approximate):
  • 0.75"W x 5.5"L x 3"H (19.1 mm W x 139.7 mm L x 76.2 mm H).
Weights (approximate):
  • Product Weight: 0.35 Lbs. (0.16 kg).
  • Shipping Weight: 0.5 Lbs. (0.23 kg).
