DP4CB

DIN Rail Power Distribution Module, 4 PTC Outputs up to 48 VAC/VDC, On/Off Switch, Includes ST3 and CLIP1 for DIN Rail Mounting

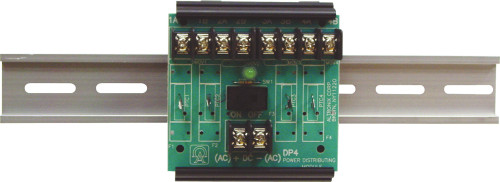

Altronix DP4CB Power Distribution Module conveniently converts a single AC/DC input into four (4) individual PTC protected outputs.

  • Input
    • Handles up to 48VAC/VDC.
  • Output
    • Four (4) PTC protected outputs.
    • Outputs are rated @ 3.5A.
    • Surge suppression.
  • Features
    • AC power LED.
    • Power ON/OFF switch.
    • Includes Snap Track (Altronix model # ST3) and mounting clips for DIN Rail mounting capability.
  • Temperature
    • Operating 0ºC to 49ºC (32ºF to 120ºF).
    • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
Dimensions (approximate):
  • 3.25"W x 3"L x 0.75"H (82.55 mm W x 76.2 mm L x 19.5 mm H).
Weights (approximate):
  • Product Weight: 0.2 Lbs. (0.09 kg).
  • Shipping Weight: 0.3 Lbs. (0.14 kg).
