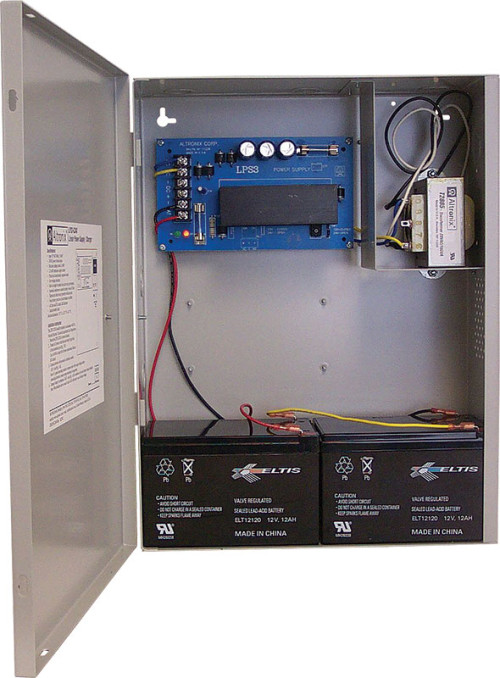

LPS3C24X

Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 2.5A, 115VAC, BC400 Enclosure

Altronix LPS3C24X is specifically designed to provide the power needed by the most demanding security and access control applications. It converts a 115VAC 50/60Hz input to a 24VDC, 2.5A output.

  • Input
    • 115VAC 50/60Hz rated @ 0.7A.
  • Output
    • 24VDC output.
    • 2.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Battery leads included.
    • Built-in charger for sealed lead acid or gel type batteries.
    • Maximum charge current 0.5A.
    • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
    • Fused battery protection (circuit breaker available).
    • (Batteries are sold separately).
  • Visual Indicators
    • AC/DC power LED indicator.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity: 85% +/- 5%.
        • BTU/Hr. (approx.): 31 BTU/Hr.
Enclosure:
  • Wall mount enclosure for indoor use.
  • Accommodates up to two (2) 12VDC/12AH Batteries.
  • Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weight: 14.75 Lbs. (6.7 kg).
  • Shipping Weight: 16 Lbs. (7.25 kg).
Print
*Batteries sold separately
