LPS3WP12220

Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 12VDC @ 2.5A, 220VAC, WP1 Enclosure

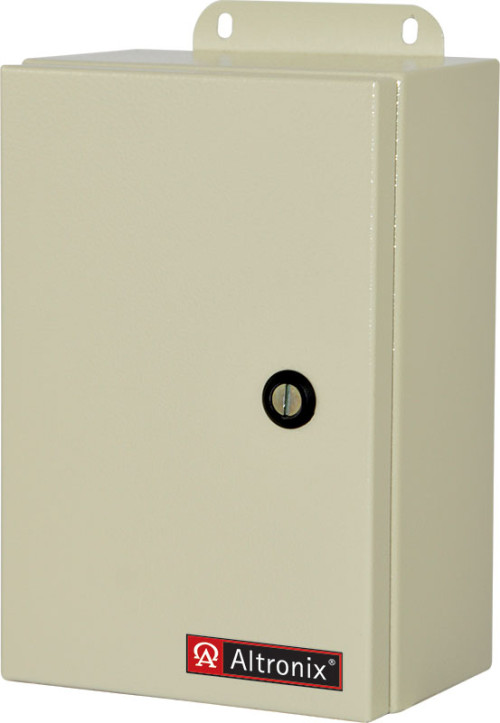

Altronix LPS3WP12 outdoor linear power supply/charger is specifically designed to provide the power needed by the most demanding security and access control applications. It converts a 220VAC 50/60Hz input to a 12VDC, 2.5A continuous output. Unit's unique NEMA 4 UL Listed enclosure allows installation next to the outdoor equipment it is designed to power.

  • Input
    • 220VAC 50/60Hz rated @ 0.25A.
  • Output
    • 12VDC output.
    • 2.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.
  • Battery Charging
    • Maximum charge current 500mA.
    • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
    • Fused battery protection (circuit breaker available).
    • (Batteries are sold separately).
  • Visual Indicators
    • AC/DC power LED indicator.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
        • Relative Humidity: 85% +/- 5%.
        • BTU/Hr. (approx.): 15 BTU/Hr.
Enclosure:
  • NEMA 4/IP 65 Rated enclosure for outdoor use.
  • Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).
Weights (approximate):
  • Product Weight: 9.8 Lbs. (4.45 kg).
  • Shipping Weight: 10.8 Lbs. (4.9 kg).
