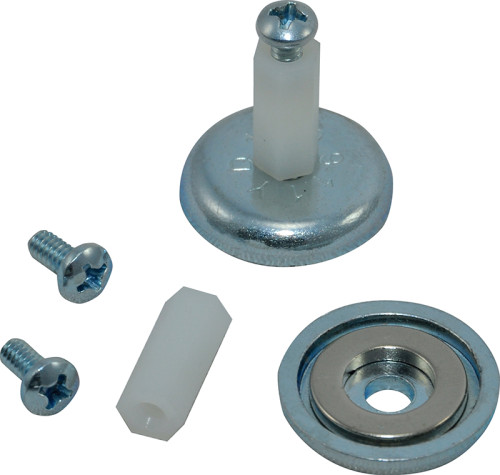

MM4S

Mounting Magnets, Four (4) Quantity per Pack

Altronix mounting magnets accommodate screws and nylon or metal standoffs to allow for mounting various boards/accessories in any metal enclosure or backplane.

  • Features:
    • Customize any Altronix metal enclosure or backplane to accommodate power supplies, distribution boards, access controllers and accessories
    • Easy, fast installation saves time and labor – no drilling required
    • Can be reused and repositioned
    • Zinc alloy cover eliminates the possibility of EMI/RFI
    • 26 lb. max strength
    • 23.8mm (15/16”) diameter cup, 6.5mm (1/4”) hole size
    • Includes hardware (screws and spacers)
Weights (approximate):
  • Product Weight: 0.15 Lbs. (0.07 kg).
  • Shipping Weight: 0.4 Lbs. (0.18 kg).
