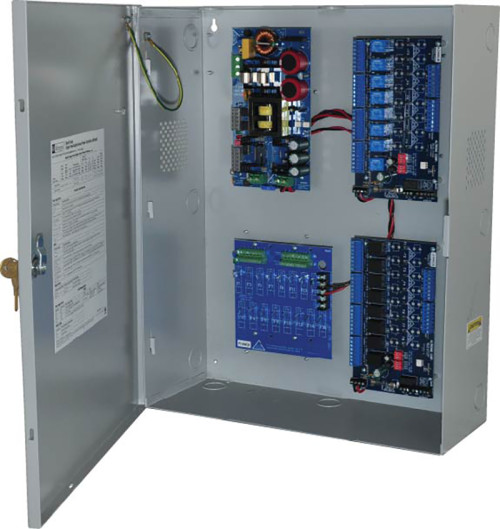

Altronix MaxFit716AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 115VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relay outputs.
MaxFit716AP | |
