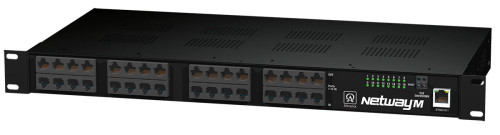

NetWay16M

Midspan Injector, 16 Port, 10/100, PoE/PoE+, 300W, 115VAC, Shutdown Trigger, Web Browser

Altronix NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 or NetWay3012 adapters.

  • Input
    • 115VAC 60Hz, 4.9A.
  • Power
    • Sixteen (16) ports of cameras/edge devices over ethernet (CAT5) cable up to a distance of 100m per port.
    • Unit provides up to 30W max. full power per port.
    • Total power: 300W.
    • IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
    • Short circuit protection.
  • Functions
    • Programmable PoE shutdown for each port. Utilized to reset cameras/edge devices.
    • Auto detection and protection of legacy non-PoE cameras/edge devices.
  • Features
    • LAN or laptop connection enables programming of PoE shutdown and port monitoring.
    • User interface.
    • Illuminated master power disconnect circuit breaker with manual reset (switch).
    • Individual port status LEDs.
    • IEC 320 - 3-wire grounded line cord (detachable).
  • Temperature
      • Operating:
        • UL60950-1: - 20° C to 40° C (-4° F to 104° F).
        • UL294: - 20° C to 49° C (-4° F to 120.2° F).
    • Storage: - 20° C to 70° C (-4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 154 BTU/Hr.
    • System AC input VA requirement: 563.5VA.
  • Operating Altitude
    • - 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
Access Control System Units (UL294)
Download File
Power Over Ethernet (PoE) for Access Control (UL294)
Download File
Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weight: 8.9 Lbs. (4.1 kg).
  • Shipping Weight: 10.2 Lbs. (4.63 kg).
