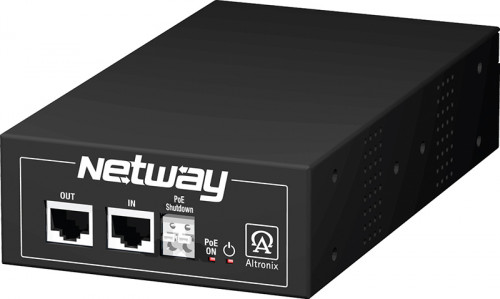

NetWay1BTS

Midspan Injector, Single Port 802.3bt, (90W) with PoE Shutdown for Standard and Enhanced Power Network Infrastructure, 115/230VAC

Altronix NetWay1BTS is an single port midspan/injector that provides PoE/PoE+/BT up to 90W (802.3bt compliant) power per port and passes data at 10/100/1000 Mbps at distances up to 100m. The Netway1BTS also includes PoE Shutdown connection via dry contact trigger.

  • Input
    • 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.
  • Power Output
    • IEEE802.3bt compliant
    • Unit provides PoE / PoE+ / BT
    • 90W full power
    • PoE Shutdown via Dry Contact
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation.
  • Indicators (LED)
      • Red LED:
        • PoE ON.
      • Red LED:
        • Power ON.
      • Yellow and Green:
        • LED (by RJ45 jack): IP Link status, 10/100Base-T/active.
  • Environmental
      • Operating Temperature:
        • 30W: - 30° C to 75° C ( - 22° F to 167° F).
        • 60W: - 30° C to 70° C ( - 22° F to 158° F).
        • 90W: - 30° C to 55° C ( - 22° F to 131° F).
      • Storage:
        • - 30° C to 85° C ( - 22° F to 185° F).
    • Relative Humidity 85% +/- 5%.
  • Operating Altitude
    • - 304.8m to 609.6m.

CE Compliant
Enclosure:
  • Dimensions 4.1"W x 1.7"H x 7.2"D (105 mm W x 44 mm H x 183 mm D).
Weights (approximate):
  • Product Weight: 2.2 Lbs. (1 kg).
  • Shipping Weight: 3.2 Lbs. (1.45 kg).
