NetWay2ESWPN

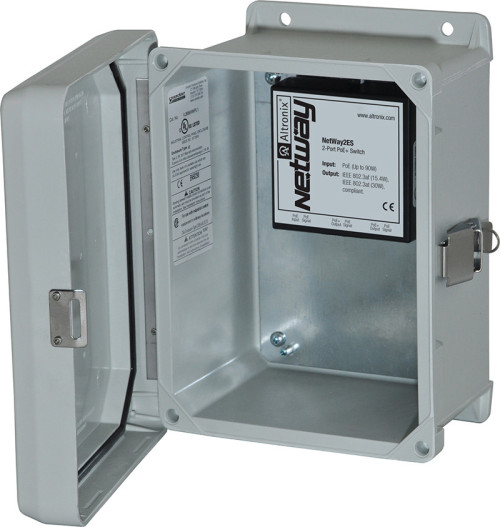

PoE-powered 2 port PoE/PoE+ Switch. NEMA4/4X rated, Outdoor enclosure.

Altronix NetWay2ESWPN 2-port PoE/PoE+ switch is designed to deploy 2-IP devices over a single CAT5 or higher structured cable. PoE is passed from a midspan injector.

  • Ethernet Input
    • 802.3bt PoE up to 90W or 802.3at up to 30W or 802.3af up to 15W.
  • Ethernet
    • 2-PoE+ ports, IEEE 802.3af and 802.3at compliant
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100 BaseT, half/full duplex, auto negotiation.
  • Indicators (LED)
      • Yellow/Green LEDs (by RJ45 jack):
        • IP Link status, 10/100 Base-T/active.
      • Green LED:
        • Input/Output PoE on.
  • Temperature
    • Operating: -20ºC to 75ºC (-4ºF to 167ºF).
    • Storage: -40ºC to 75ºC (-40ºF to 167ºF).
    • Relative Humidity 85% +/-5%.
  • Operating Altitude
    • -304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Dimensions 7.32"W x 9.5"H x 4.92"D (185.9 mm W x 236.7 mm H x 125 mm D).
Weights (approximate):
  • Product Weight: 3.7 Lbs. (1.68 kg).
  • Shipping Weight: 5 Lbs. (2.27 kg).
