NetWay4EX

Single 1G Fiber SFP, 4 port 10/100/1000 PoE/PoE+ configurable for 4 x 30W Hi-PoE; Hardened 120W Power Supply/BatChgr & Switch Boards mounted in metal Indoor BC300 enclosure; LINQ

Altronix NetWay4EX Indoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.

  • Input
    • 115VAC 60 Hz, 3A or 230VAC 50/60 Hz, 1.65A.
  • Power Output
    • Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports.
    • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
    • 120W total power.
    • Integral surge protection.
  • Fiber Port
    • One (1) Gigabit SFP port.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair Cat-5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Charging
    • Type: Sealed lead acid or gel type.
    • Failover: Upon AC loss, instantaneous.
    • (Batteries are sold separately).
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Temperature
    • Operating: (120W): - 40° C to 50° C (-40° F to 122° F).
    • Storage: - 30° C to 85° C (-22° F to 185° F).
    • Relative Humidity: 85% +/- 5%
    • BTU/Hr. (approx.): 61 BTU/Hr.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • LINQ Technology
    • Remote network management allows for camera/device reset and monitoring.
    • PoE port management via Dashboard IP management program.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
UL Listed For:
Information Technology Equipment (UL60950-1)
cUL Listed For:
Information Technology Equipment

CE Compliant

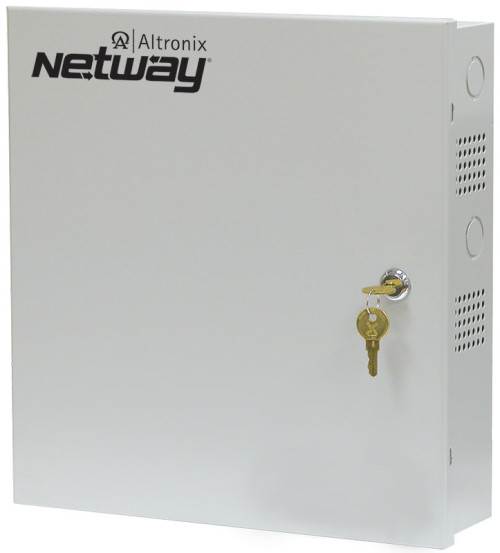

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weight: 6.65 Lbs. (3.02 kg).
  • Shipping Weight: 7.55 Lbs. (3.42 kg).
Print
*Batteries sold separately
