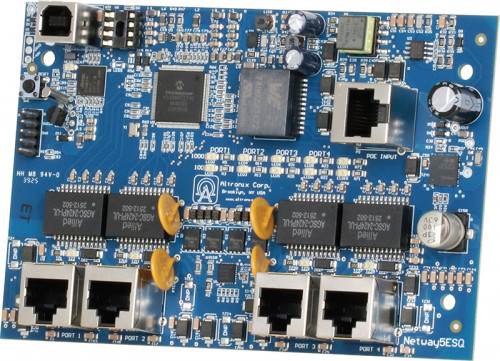

NetWay5ESQ

5-Port Managed PoE+ Switch Board

For unmanaged switch see model NetWay5ES.

Altronix NetWay5ESQ Hardened PoE+ Switch board allows for system expansion by accommodating up to four (4) IP cameras/devices over a single CAT5 or higher structured cable. Power up to 90W can be provided by Altronix NetWay1BT 802.3bt PoE injector, or any IEEE 802.3bt standard midspan/endspan typically located at the MDF (Main Distribution Frame) Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics from anywhere over the network.

  • Input
    • 802.3bt PoE (90W)
  • Output
    • Maximum power per port:
    • PoE+ (30W each), 90W total combined
    • Power provided using all 4 pairs on structured cable
  • Ethernet
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or better structured cable
    • Distance: up to 100m
    • Speed: 10/100/1000 half/full duplex, auto negotiation
  • LED Indicators
    • Yellow and Green LED (by RJ45 jack):
    • IP Link status, 100/1000Base-T/active
  • VLAN:
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • LINQ Technology:
    • Remote network power management allows for device reset and monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time diagnostics
    • Event log tracks history
  • Temperature
    • Operating - 40ºC to 75ºC (- 40ºF to 167ºF).
    • Storage: - 40ºC to 75ºC (- 40ºF to 167ºF).
    • Relative Humidity: 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Mounting hardware included

    CE Compliant
    Dimensions (approximate):
    • 0.75"W x 5.9"L x 3.6"H (19 mm W x 150 mm L x 91.4 mm H).
    Weights (approximate):
    • Product Weight: 0.25 Lbs. (0.11 kg).
    • Shipping Weight: 0.75 Lbs. (0.34 kg).
