5-port Managed Hardened PoE+ Switch with Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure WP2

For unmanaged switch see model NetWay5PWPX.

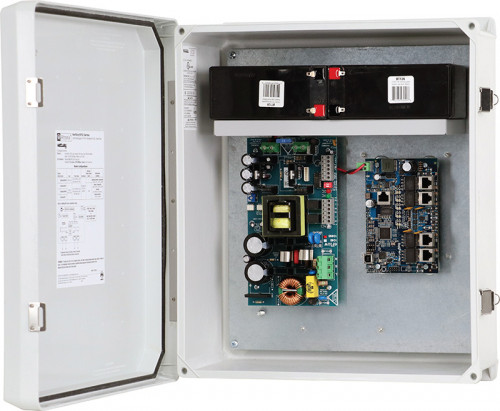

Altronix NetWay5PQWPX powered hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include integrating network door access systems with video surveillance. Enclosure accommodates two (2) 12VDC/7AH batteries (proper ventilation is required). Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics.

  • Input
    • Voltage: 120VAC, 60Hz, 4.5A
    • Input Fuse: 6.3A/250V
  • Power Output
      • Maximum Power
        • Four (4) 10/100/1000 Mbps
        • PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
        • 120W total power
        • Integral surge protection
      • Uplink Port
        • Single data port
  • Ethernet Ports
    • Five (5) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5 or better structured cable
    • Distance: up to 100m
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • LINQ Technology
    • Remote network power management allows for device reset and monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time diagnostics
    • Event log tracks history
  • VLAN
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • LED Indicators
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100Base-T/active LEDs for each port
  • Temperature
    • Operating - 30ºC to 70ºC (- 22ºF to 158ºF)
    • Storage: - 40ºC to 85ºC (- 40ºF to 185ºF)
    • Relative Humidity: 85% +/- 5%
  • Operating Altitude
    • - 304.8 to 2,000m.
CE Compliant
  • NEMA 4/IP 66 Rated enclosure for outdoor use.
  • Accommodates up to two (2) 12VDC/7AH Batteries.
  • Dimensions 15.3"W x 17.53"H x 6.67"D (388.6 mm W x 445.3 mm H x 169.4 mm D).
Weights (approximate):
  • Product Weight: 15 Lbs. (6.8 kg).
  • Shipping Weight: 17.5 Lbs. (7.9 kg).
