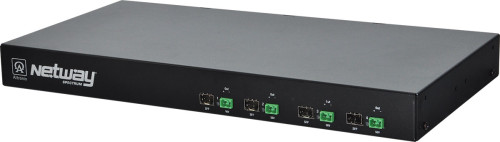

NetWaySP4P

4-port Fiber Optic Transceivers with Built-In Power Supply/Charger for conventional Fiber or composite cable (fiber+copper) Application; 120W per port (240W total)

This product replaces NetWaySP4

Altronix NetWaySP4P provide four (4) 1Gb SFP ports and four (4) power outputs (240W total power) to be transmitted over single, mulit-mode fiber as well as composite cable (fiber + copper combined) to NetWay Spectrum PoE hardened switches.

  • Input
    • Voltage: 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2A.
  • Power
    • Four (4) 56VDC non power-limited outputs up to 120W max. full power per port (240W total power).
    • IEEE 802.3af and IEEE 802.3at compliant (PoE/PoE+).
    • Short circuit protection.
  • Fiber Port
    • Four (4) Gigabit SFP ports.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet
    • Four (4) Gigabit (1000Mbps) ports.
    • Wire type: 4-pair CAT5e and higher.
    • Connectivity: RJ45, auto-crossover.
    • Speed: Gigabit (1000Mbps).
    • Distance: up to 100m.
  • Battery Charging
    • Type: Sealed lead acid or gel type
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately).
  • Temperature
    • Operating (120W): - 40° C to 50° C ( - 40° F to 122° F).
    • Storage: - 40° C to 85° C ( - 40° F to 185° F).
    • Relative Humidity: 85% +/- 5%.
    • Operating Altitude: - 304.8 to 2,000m ( - 1,000 to 6,561.679 ft.).
    • BTU/Hr. (approx.): 123 BTU/Hr.
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
cUL Listed For:
Information Technology Equipment
Download File

CE Compliant
Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weight: 3.8 Lbs. (1.7 kg).
  • Shipping Weight: 6 Lbs. (2.7 kg).
