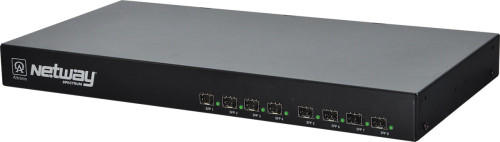

NetWaySP8A

8-Port Ethernet to Fiber Media Converter/Repeater

Altronix NetWaySP8A eight (8) port media converter/repeater converts a Gigabit (1000Mbps) Ethernet to Fiber (1000Base-X/SX/LX).

  • Input
    • 115VAC, 60Hz, 0.5A or 230VAC, 50/60Hz, 0.3A.
  • Fiber Ports
    • Eight (8) 1Gb SFP ports.
  • Ethernet
    • Eight (8) Gigabit (1000Mbps) ports.
  • Indicators (LED)
      • Ethernet (RJ45):
        • Green LED = 1Gbps
        • Yellow/orange LED = 10/100 Mbps.
      • Link SFP LED:
        • Indicates SFP connection.
  • Temperature
    • Operating: - 40ºC to 50ºC ( - 40ºF to 122ºF).
    • Storage: - 40ºC to 85ºC ( - 40º to 185ºF).
    • Relative Humidity: 85% +/- 5%.
  • Operating Altitude
    • - 304.8 to 2,000m (-1,000 to 6,561.679 ft.).
UL Listed For:
Information Technology Equipment (UL60950-1)
Download File
cUL Listed For:
Information Technology Equipment
Download File

CE Compliant
Enclosure:
  • Modular 1U standard EIA 19" rack mount chassis.
  • Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).
Weights (approximate):
  • Product Weight: 3.81 Lbs. (1.72 kg).
  • Shipping Weight: 6 Lbs. (2.72 kg).
