NetWaySP8C3W5

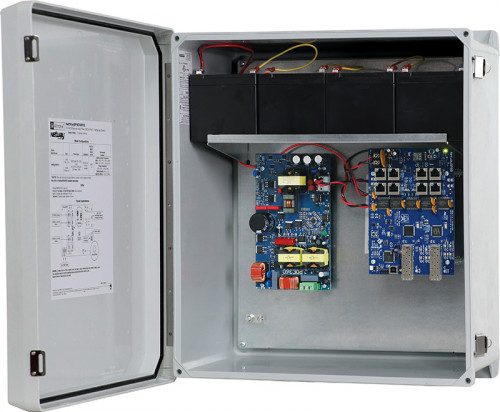

8-port Hardened 360W Ethernet over Fiber Hardened PoE+ Switch with Rapid Battery Charger mounted in NEMA 4/4X, IP66-11 rated Outdoor enclosure.

Altronix NetWaySP8C3WP5 supports up to 60W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) Ethernet ports. NetWaySP8C3WP5 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum headend media converters/injectors. NetWaySP8C3W5 has an integrated rapid battery charger for extended battery run times. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere.

  • Input
    • Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A
    • Input Fuse: 5A/250V
  • Power Output
      • Maximum Power:
        • Eight (8) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports, 360W total power
        • IEEE 802.3af (15W), IEEE 802.3at (30W) compliant
        • 360W total power
        • Integral surge protection
      • SFP Ports:
        • Two (2) Gigabit SFP ports
  • Ethernet Ports
    • Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports
    • Connectivity: RJ45, auto-crossover
    • Wire type: 4-pair CAT5e or better higher structured cable
    • Distance: up to 100m
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
  • Battery Charging
    • Selectable 2A or 4A charging circuit
    • Able to recharge 32AH or larger batteries in under 8 hours
    • Low battery and battery presence supervision
    • AC Fail supervision
    • Failover: Upon AC loss, instantaneous
    • (Batteries are sold separately)
    • (Vent2 Ventilation Kit is included)
  • Indicators (LED)
    • Individual PoE On LEDs for each port
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port
    • ALOS LED indicates fiber connection for SFP port
    • Heartbeat LED indicates proper operation of the unit
  • VLAN:
    • Multiple management VLAN assignment
    • 802.1Q Tagged VLAN
    • Up to 10 VLAN groups. ID Range 2-4095
  • LINQ Technology:
    • Remote network management allows for camera/device reset and diagnostic monitoring
    • Provides local and/or remote access to critical information via LAN/WAN
    • Email and Windows Dashboard Alert notifications report real-time events
    • Event log tracks history
  • Temperature
    • Operating (360W): – 30ºC to 65ºC (– 22ºF to 149ºF)
    • Operating (240W): – 30ºC to 70ºC (– 22ºF to 158ºF)
    • Storage: – 30ºC to 85ºC (– 22ºF to 185ºF)
    • Relative Humidity: 85% +/– 5%
    • BTU/Hr. (approx.): 183 BTU/Hr.
    • Operating Altitude: – 304.8 to 2,000m.

CE Compliant
Enclosure:
  • NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
  • Accommodates up to four (4) 12VDC/12AH Batteries.
  • Dimensions 17.32"W x 19.31"H x 9.58"D (439.9 mm W x 490.4 mm H x 243.3 mm D).
Weights (approximate):
  • Product Weight: 20.6 Lbs. (9.34 kg).
  • Shipping Weight: 24.3 Lbs. (11.1 kg).
Print
*Batteries sold separately
